SN74HCS86DR دیتاشیت

SN74HCS86DR

مشخصات دیتاشیت

نام دیتاشیت SN74HCS86DR
حجم فایل 69.186 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

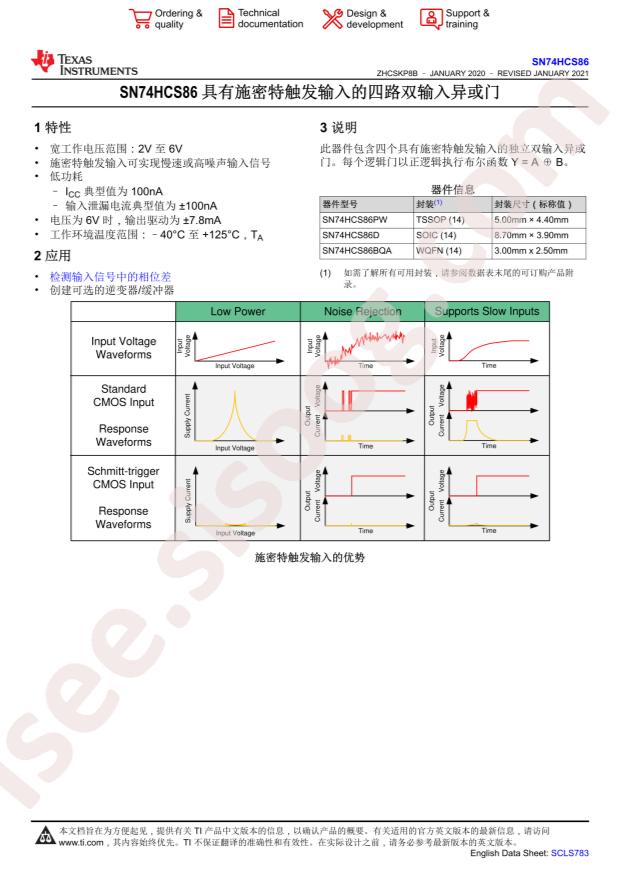

مشاهده دیتاشیت SN74HCS86DR

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Series: 74HCS
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74HCS86DR
  • Sink Current: 7.8mA
  • Source Current: 7.8mA
  • Supply Voltage: 2V~6V
  • Logic Gate Type: XORGate
  • Number of Channels: 4
  • Low Level Range (VIL): 1V~3V
  • Operating Temperature: -40°C~+125°C
  • High Level Range (VIH): 1.5V~4.2V
  • Propagation Delay Time: 12ns@6V,50pF
  • Quiescent Current (Max): 2uA
  • Package: SOP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 1V ~ 3V
  • Current - Quiescent (Max): 2µA
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 4
  • Packaging: Cut Tape (CT)
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Logic Level - High: 1.5V ~ 4.2V
  • Part Status: Active
  • Current - Output High, Low: 7.8mA, 7.8mA
  • Features: Schmitt Trigger
  • Supplier Device Package: 14-SOIC
  • Number of Inputs: 2
  • Logic Type: XOR (Exclusive OR)
  • Max Propagation Delay @ V, Max CL: 12ns @ 6V, 50pF
  • detail: XOR (Exclusive OR) IC 4 Channel Schmitt Trigger 14-SOIC
