SN74AHCT1G08 Datasheet دیتاشیت

SN74AHCT1G08 Datasheet

مشخصات دیتاشیت

نام دیتاشیت SN74AHCT1G08 Datasheet
حجم فایل 1164.19 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

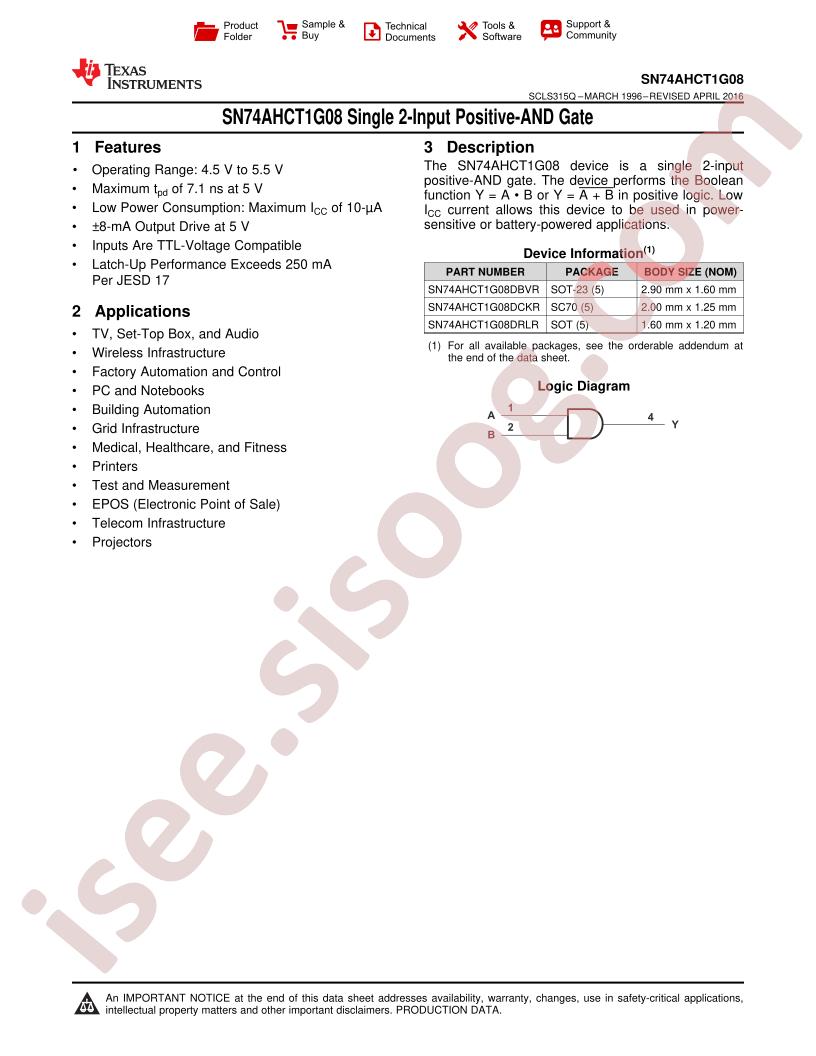

مشاهده دیتاشیت SN74AHCT1G08 Datasheet

دانلود دیتاشیت

سایر مستندات

SN74AHCT1G08DCK3 23 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AHC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AHCT1G08DBV3
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: And
  • Number of Channels: 1
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: -40°C~+125°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 7.9ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.8V
  • Current - Quiescent (Max): 1µA
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 1
  • Packaging: Cut Tape (CT)
  • Package / Case: SC-74A, SOT-753
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 8mA, 8mA
  • Features: -
  • Base Part Number: SN74AHCT
  • Supplier Device Package: SOT-23-5
  • Number of Inputs: 2
  • Logic Type: AND Gate
  • Max Propagation Delay @ V, Max CL: 7.9ns @ 5V, 50pF
  • detail: AND Gate IC 1 Channel SOT-23-5
