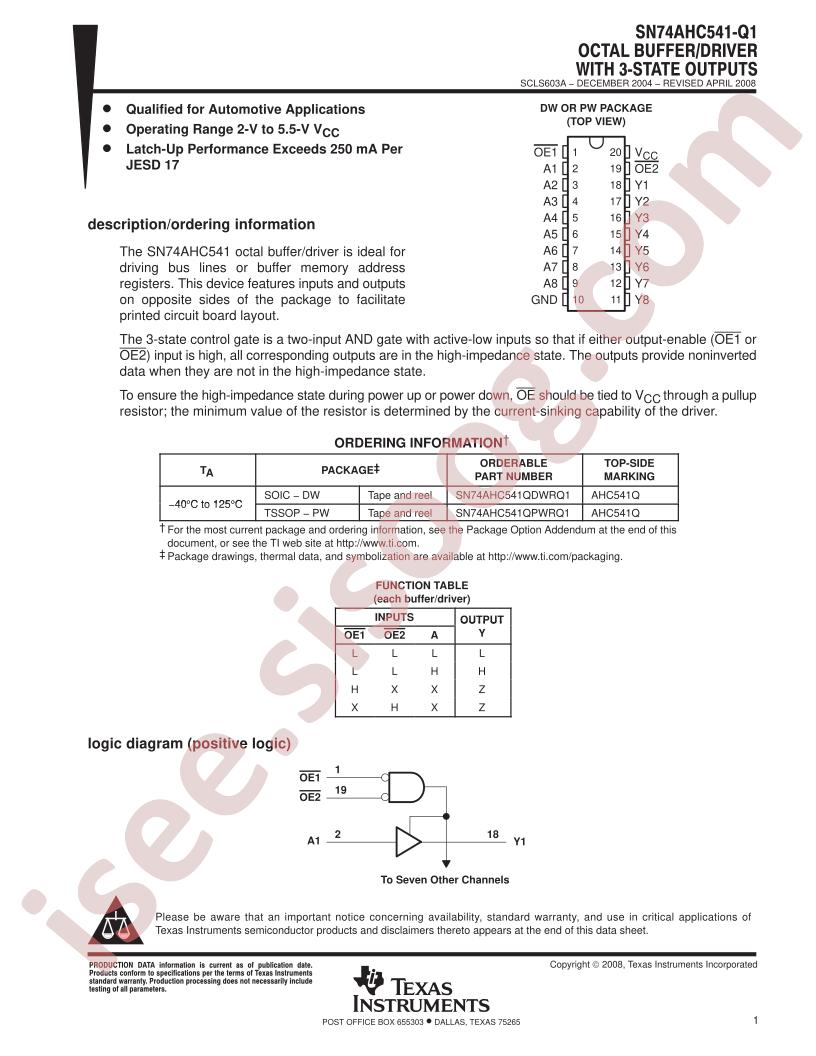

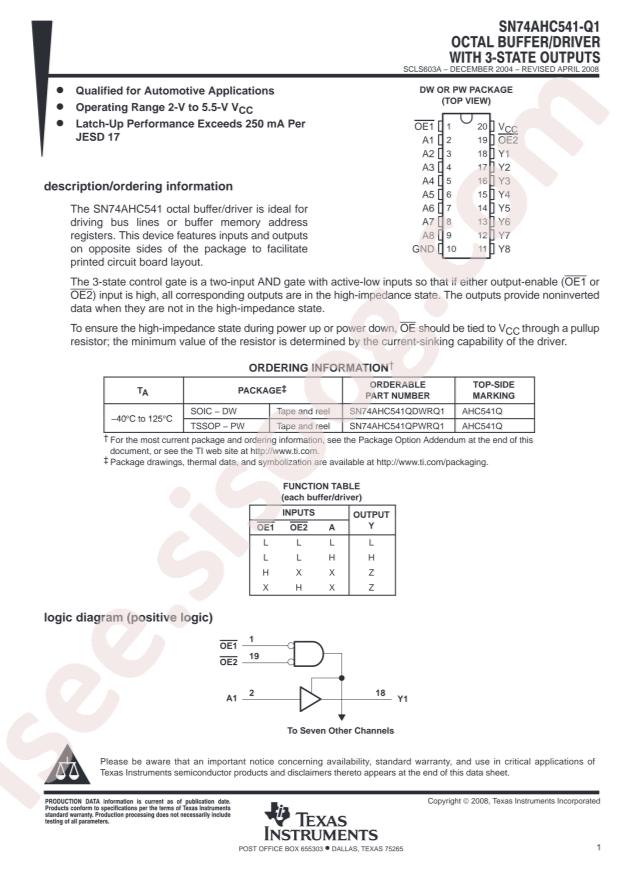

دیتاشیت SN74AHC541QPWRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
SN74AHC541-Q1
|
| حجم فایل |
781.238
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Category:
Logic ICs/Buffer/Driver/Transceiver
-
Datasheet:
Texas Instruments SN74AHC541QPWRQ1
-
output type:
Tri-State
-
Logic Family:
74AHC
-
Sink Current:
8mA
-
Source Current:
8mA
-
Supply Voltage:
2V~5.5V
-
Number of Elements:
1
-
Operating Temperature:
-40°C~+125°C
-
Number of Bits per Element:
8
-
Package:
TSSOP-20
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
2V ~ 5.5V
-
Input Type:
-
-
Mounting Type:
Surface Mount
-
Packaging:
Digi-Reel®
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
-
Part Status:
Active
-
Current - Output High, Low:
8mA, 8mA
-
Series:
Automotive, AEC-Q100, 74AHC
-
Supplier Device Package:
20-TSSOP
-
Logic Type:
Buffer, Non-Inverting
-
Base Part Number:
SN74A
-
detail:
Buffer, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOP
