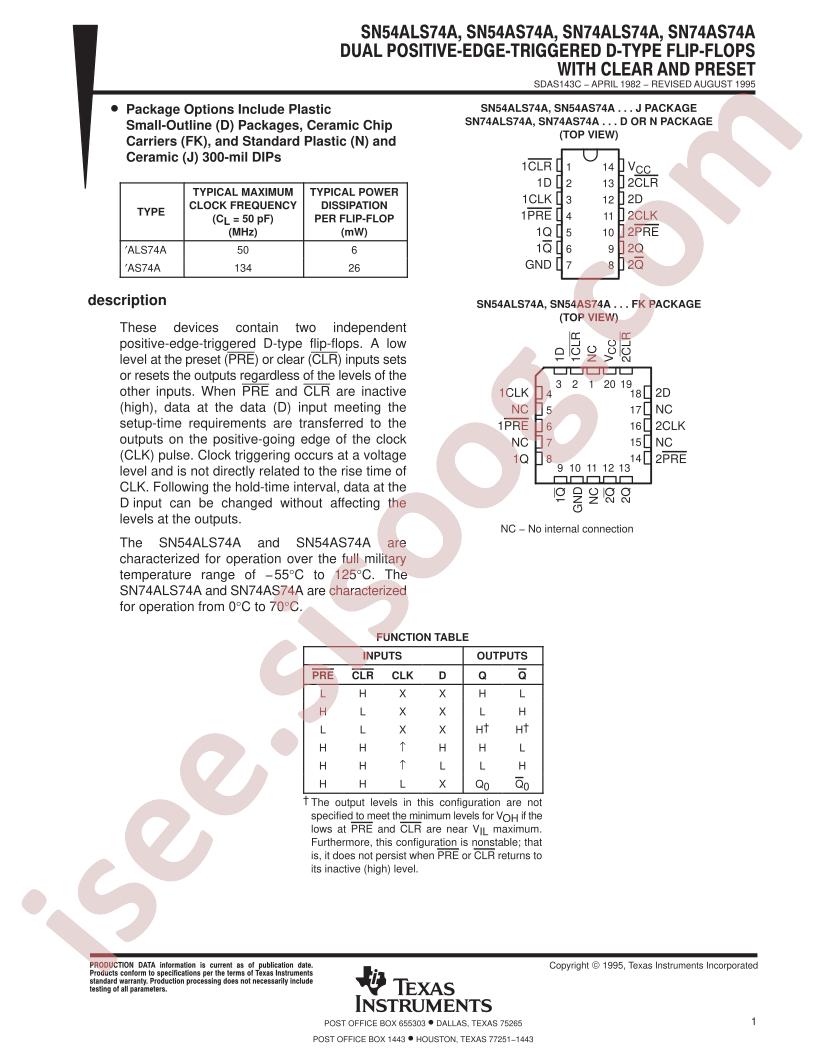

- دیتاشیت SN54/74(ALS,AS)74A
SN54/74(ALS,AS)74A دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(ALS,AS)74A |
|---|---|
| حجم فایل | 989.636 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت SN54/74(ALS,AS)74A |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74AS74ADR 21 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74ALS
- Category: Logic ICs/Flip Flops
- Function: 置位和复位
- Datasheet: Texas Instruments SN74ALS74ANSR
- Output Type: 互补型
- Sink Current: 8mA
- Trigger Type: 上升沿
- Source Current: 400uA
- Supply Voltage: 4.5V~5.5V
- Clock Frequency: 34MHz
- Number of Elements: 2
- Operating Temperature: 0°C~+70°C
- Quiescent Current (Iq): 4mA
- Maximum Propagation Delay: 18ns@5V,50pF
- Number of Bits per Element: 1
- Package: SOP-14
- Manufacturer: Texas Instruments
- Max Propagation Delay @ V, Max CL: 18ns @ 5V, 50pF
- Package / Case: 14-SOIC (0.209", 5.30mm Width)
- Current - Quiescent (Iq): 4mA
- Base Part Number: SN74ALS7
- Supplier Device Package: 14-SO
- Packaging: Tube
- Current - Output High, Low: 8mA, 2mA
- Mounting Type: Surface Mount
- Voltage - Supply: 4.5V ~ 5.5V
- Part Status: Active
- detail: Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-SOIC (0.209", 5.30mm Width)
