TMUX6113RTER دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TMUX6113RTER	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

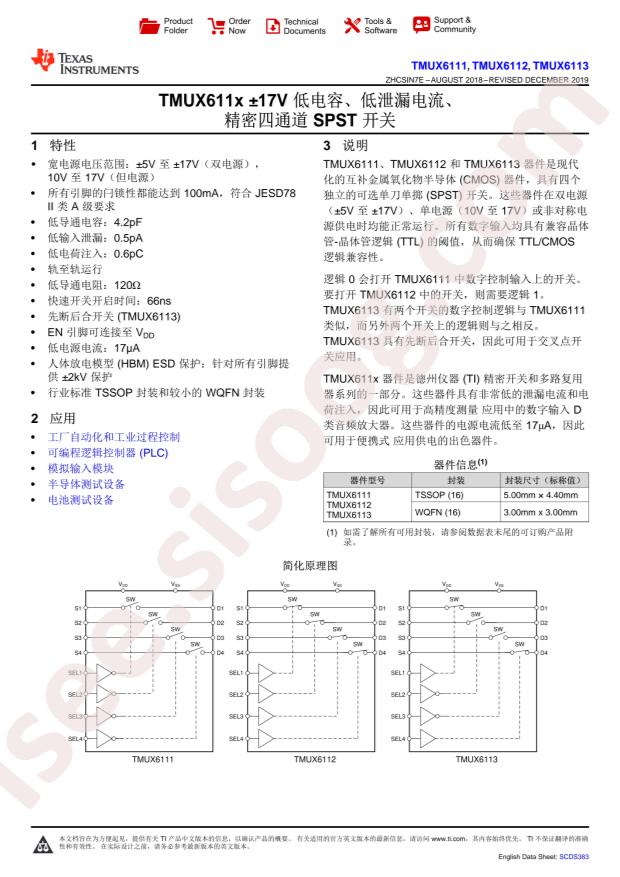

Datasheet: Texas Instruments TMUX6113RTER
Turn-on time: 78ns
Turn-off time: 68ns
Supply Voltage: 10V~16.5V
Switch Circuit: SPST(SPST)
Number of Channels: 4
On-State Resistance (Max): 160Ω
Package: QFN-16-EP(3x3)
Manufacturer: Texas Instruments
Current - Leakage (IS(off)) (Max): 20pA
Voltage - Supply, Single (V+): 10V ~ 16.5V
Voltage - Supply, Dual (V±): ±5V ~ 16.5V
Number of Circuits: 4
Channel-to-Channel Matching (ΔRon): 2.5Ohm
Package / Case: 16-WFQFN Exposed Pad
Part Status: Active
Supplier Device Package: 16-WQFN (3x3)
Switch Time (Ton, Toff) (Max): 78ns, 68ns
Packaging: Cut Tape (CT)
-3db Bandwidth: 800MHz
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Crosstalk: -100dB ~ -115dB @ 1MHz
Base Part Number: TMUX61
Series: -
Channel Capacitance (CS(off), CD(off)): 2.5pF, 2.4pF
Multiplexer/Demultiplexer Circuit: 1:1
Charge Injection: 0.6pC
detail: 4 Circuit IC Switch 1:1 160Ohm 16-WQFN (3x3)
