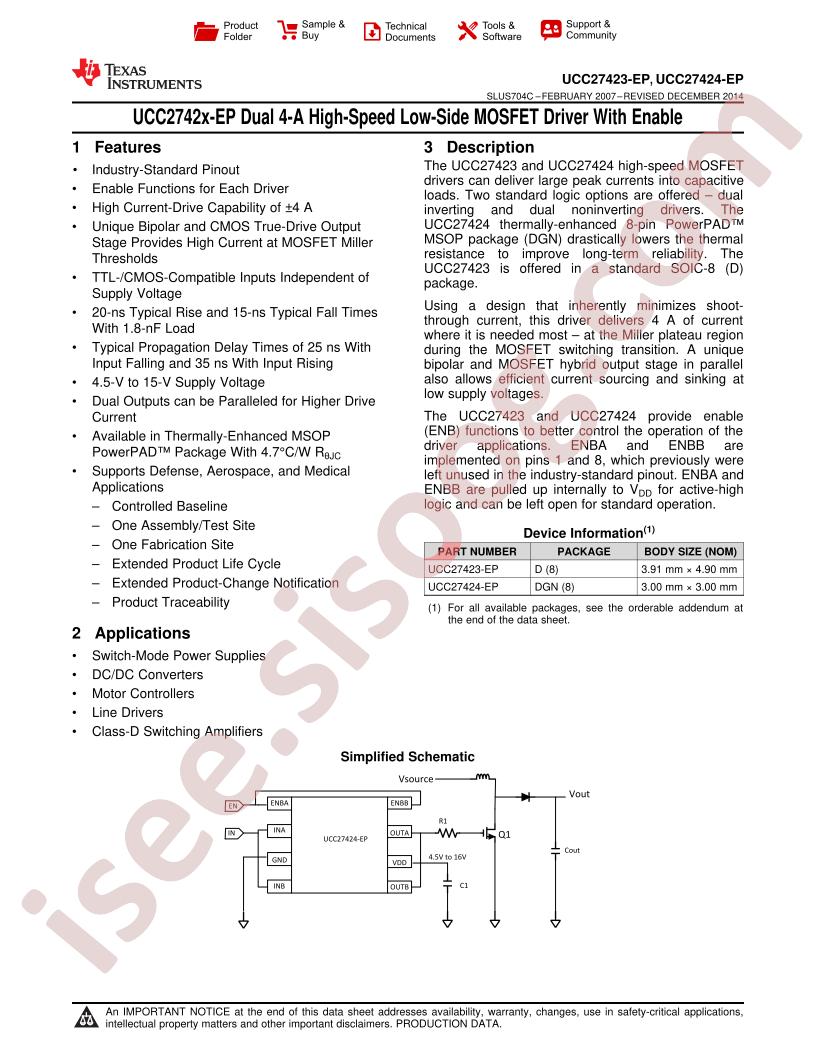

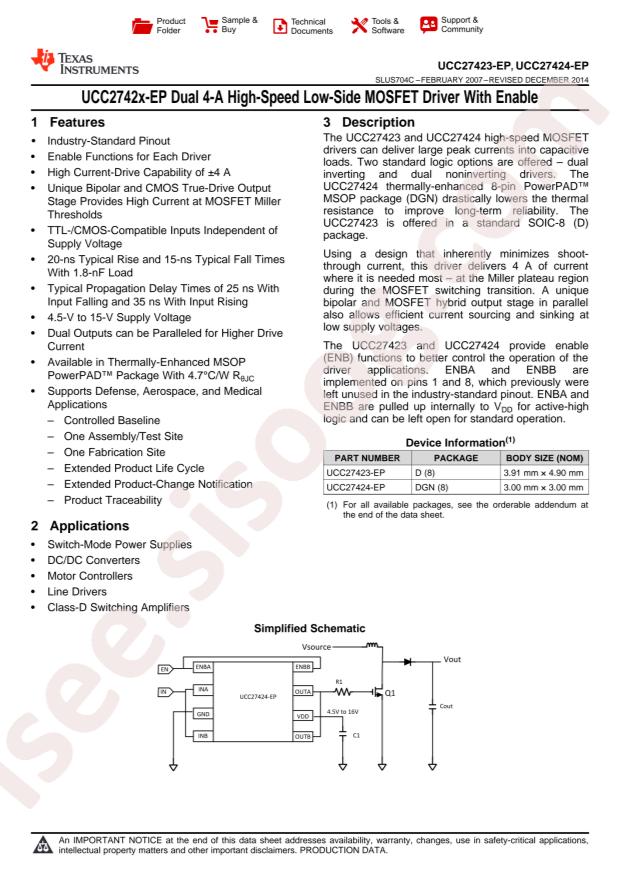

دیتاشیت UCC27424MDGNREP
مشخصات دیتاشیت
| نام دیتاشیت |
UCC27424-EP
|
| حجم فایل |
1540.224
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
33
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments UCC27424MDGNREP
-
Fall Time:
15ns
-
Load Type:
MOSFET
-
Rise Time:
20ns
-
Supply Voltage:
4V~15V
-
Number of Drivers:
2
-
Driven Configuration:
Low Side
-
Operating Temperature:
-55°C~+125°C@(Ta)
-
Peak Output Current(sink):
4A
-
Peak Output Current(source):
4A
-
Package:
MSOP-8
-
Manufacturer:
Texas Instruments
-
Channel Type:
Independent
-
Input Type:
Non-Inverting
-
Voltage - Supply:
4V ~ 15V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Part Status:
Active
-
Logic Voltage - VIL, VIH:
1V, 2V
-
Rise / Fall Time (Typ):
20ns, 15ns
-
Gate Type:
N-Channel, P-Channel MOSFET
-
Base Part Number:
UCC274
-
Supplier Device Package:
8-MSOP-PowerPad
-
Current - Peak Output (Source, Sink):
4A, 4A
-
detail:
Low-Side Gate Driver IC Non-Inverting 8-MSOP-PowerPad
