دیتاشیت SN74F377AN

مشخصات دیتاشیت

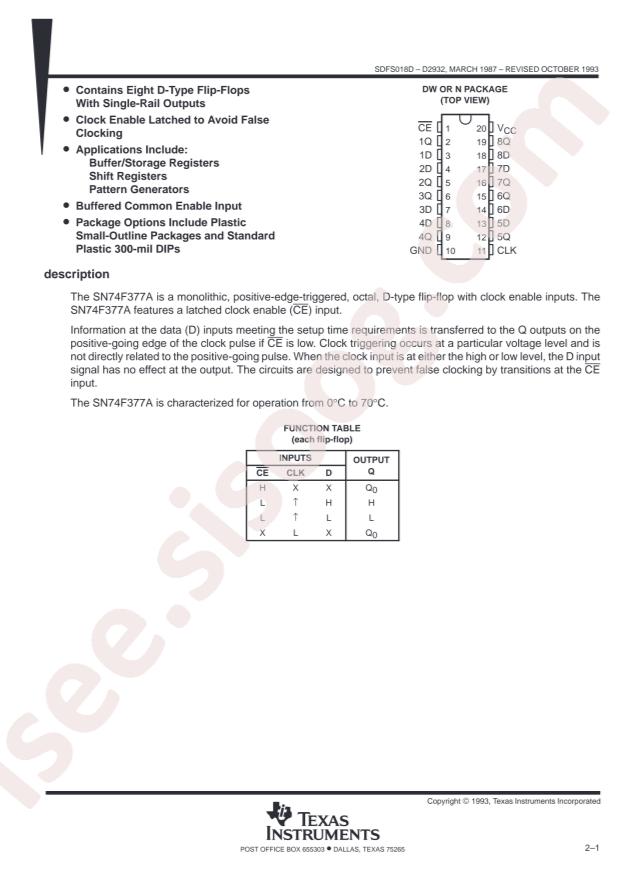

دانلود دیتاشیت SN74F377A	SN74F377A Datasheet

RoHS: true
Type: D-Type
Series: 74F
Category: Logic ICs/Flip Flops
Datasheet: Texas Instruments SN74F377AN
Output Type: Non-Inverted
Sink Current: 20mA
Trigger Type: 上升沿
Source Current: 1mA
Supply Voltage: 4.5V~5.5V
Clock Frequency: 125MHz
Operating Temperature: 0°C~+70°C
Quiescent Current (Iq): 72mA
Maximum Propagation Delay: 9ns@5V,50pF
Number of Bits per Element: 8
Package: PDIP-20
Manufacturer: Texas Instruments
Number of Elements: 1
Voltage - Supply: 4.5V ~ 5.5V
Package / Case: 20-DIP (0.300", 7.62mm)
Function: Standard
Packaging: Tube
Current - Output High, Low: 1mA, 20mA
Part Status: Active
Base Part Number: SN74F37
Supplier Device Package: 20-PDIP
Mounting Type: Through Hole
Current - Quiescent (Iq): 72mA
Max Propagation Delay @ V, Max CL: 9ns @ 5V, 50pF
detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
