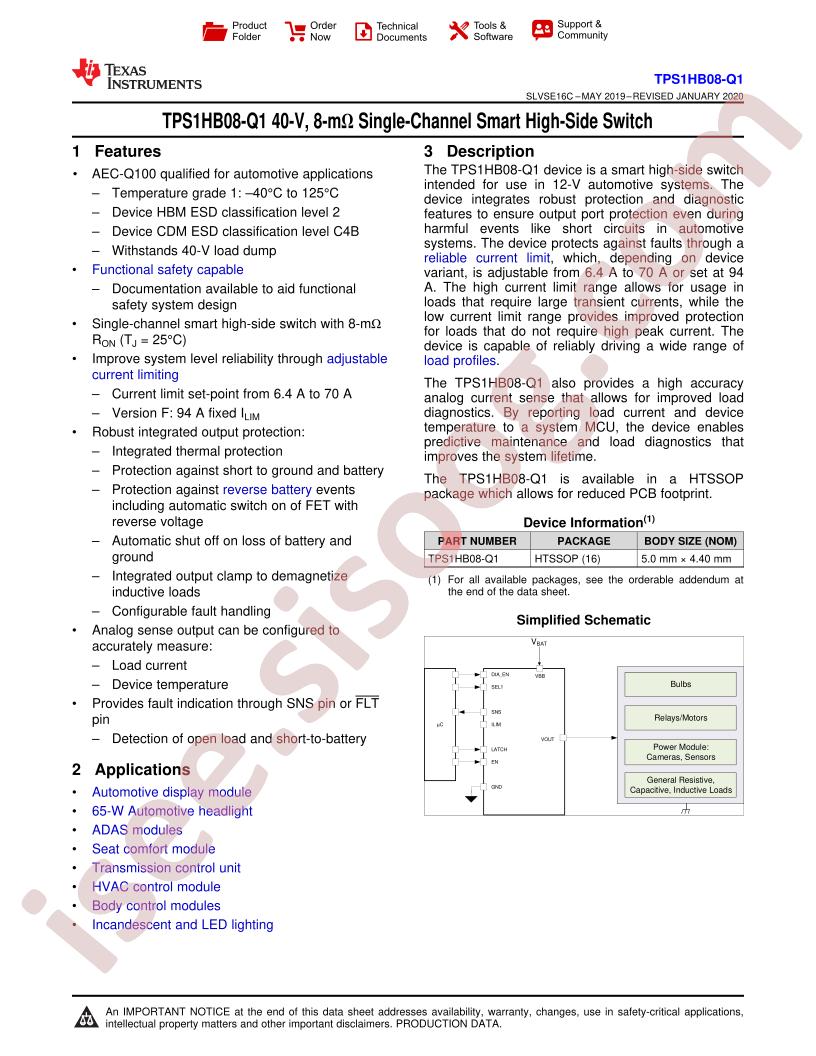

دیتاشیت TPS1HB08BQPWPRQ1
مشخصات دیتاشیت
| نام دیتاشیت |
TPS1HB08-Q1
|
| حجم فایل |
1713.928
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
50
|
مشخصات
-
Package / Case:
16-PowerTSSOP (0.173", 4.40mm Width)
-
Current - Output (Max):
70A
-
Input Type:
-
-
Rds On (Typ):
8mOhm
-
Manufacturer:
Texas Instruments
-
Fault Protection:
Current Limiting (Adjustable), Over Current, Over Temperature, Reverse Current, UVLO
-
Part Status:
Active
-
Features:
-
-
Output Configuration:
High Side
-
Operating Temperature:
-40°C ~ 125°C
-
Interface:
-
-
Ratio - Input:Output:
1:1
-
Switch Type:
General Purpose
-
Series:
Automotive, AEC-Q100
-
Output Type:
N-Channel
-
Supplier Device Package:
16-HTSSOP
-
Mounting Type:
Surface Mount
-
Number of Outputs:
1
-
Voltage - Supply (Vcc/Vdd):
3V ~ 28V
-
Voltage - Load:
-
-
detail:
Power Switch/Driver 1:1 N-Channel 70A 16-HTSSOP
