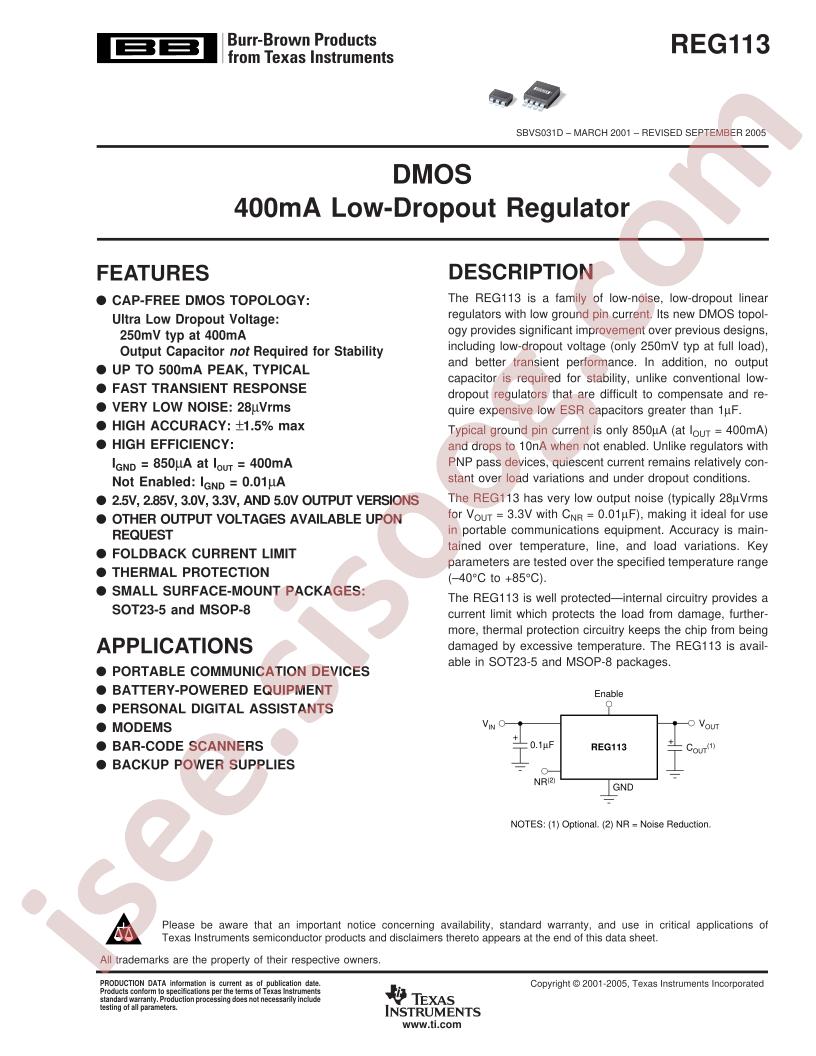

REG113EA-5/2K5 Datasheet

REG113

Datasheet specifications

Datasheet's name REG113
File size 1126.247 KB
File type pdf
Number of pages 22

Download Datasheet REG113

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Current - Supply (Max): 1mA
  • Output Configuration: Positive
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Packaging: Cut Tape (CT)
  • Protection Features: Over Current, Over Temperature
  • Number of Regulators: 1
  • Part Status: Active
  • Current - Quiescent (Iq): 500µA
  • Operating Temperature: -40°C ~ 85°C
  • Supplier Device Package: 8-VSSOP
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 10V
  • Voltage - Output (Min/Fixed): 5V
  • Mounting Type: Surface Mount
  • PSRR: 65dB (120Hz)
  • Base Part Number: REG113
  • Series: -
  • Output Type: Fixed
  • Control Features: Enable
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.41V @ 400mA
  • Current - Output: 400mA
  • detail: Linear Voltage Regulator IC 1 Output 400mA 8-VSSOP
