TPS3306-33QDRQ1 Datasheet

TPS3306-33QDRQ1

Datasheet specifications

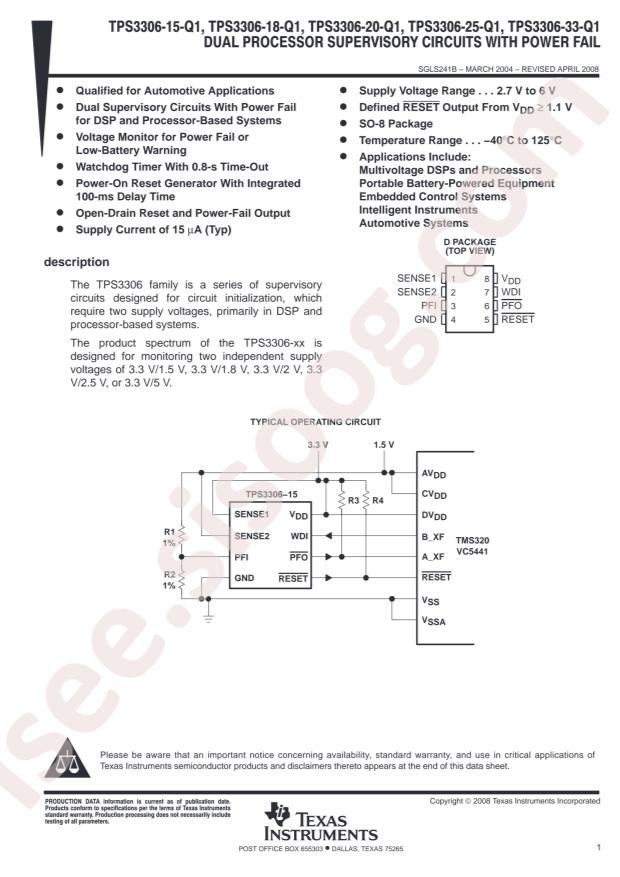

Datasheet's name TPS3306-33QDRQ1
File size 74.65 KB
File type pdf
Number of pages 17

Download Datasheet TPS3306-33QDRQ1

Download Datasheet

Other documentations

TPS3306-15/18/20/25/33-Q1 17 pages

Technical specifications

  • RoHS: true
  • Category: Power Supply Chip/Monitors & Reset Circuits
  • Datasheet: Texas Instruments TPS3306-33QDRQ1
  • Output Type: Open Drain
  • Reset Timeout: 70ms
  • Threshold Voltage: 2.93V;4.55V
  • Reset Active Level: Active Low
  • Operating Temperature: -40°C~+125°C@(TA)
  • Number of Voltages Monitored: 2
  • Type of the Power Management Chip: Multi-pressure monitor
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Voltage - Threshold: 2.93V, 4.55V
  • Reset: Active Low
  • Part Status: Active
  • Mounting Type: Surface Mount
  • Packaging: Digi-Reel®
  • Type: Multi-Voltage Supervisor
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Series: Automotive, AEC-Q100
  • Supplier Device Package: 8-SOIC
  • Base Part Number: TPS330
  • Output: Open Drain or Open Collector
  • detail: Supervisor Open Drain or Open Collector 2 Channel 8-SOIC
