TPS51463RGET دیتاشیت

مشخصات دیتاشیت

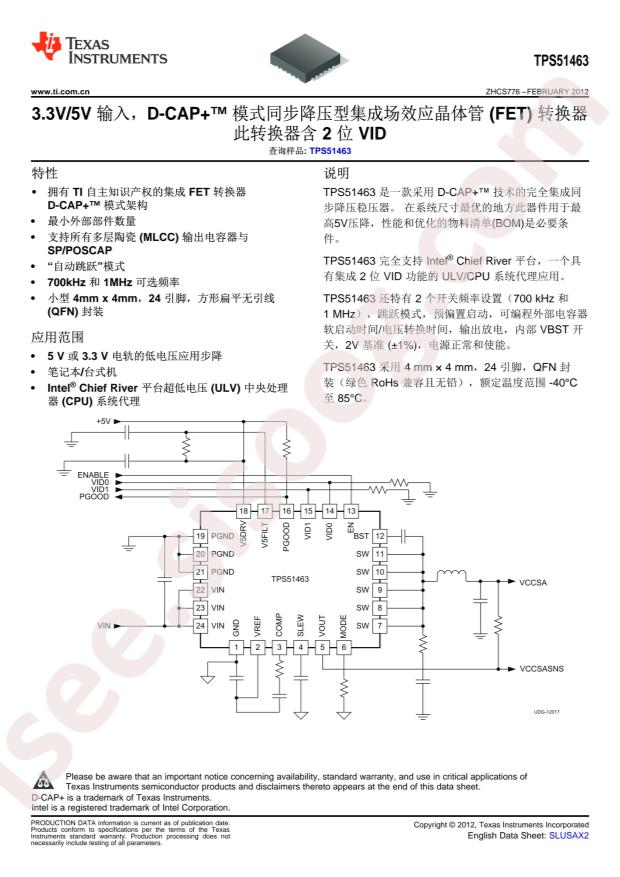

مشاهده دیتاشیت TPS51463RGET	دانلود دیتاشیت

TPS51463 29 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS51463RGET
Output Type: Adjustable
Input Voltage: 4.5V~5.5V
Output Voltage: 0.75V;0.775V;0.85V;0.9V
Number of Outputs: 1
Switching Frequency: 700kHz;1MHz
Output Current (Max): -
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: VQFN-24-EP(4x4)
Manufacturer: Texas Instruments
Current - Output: -
Voltage - Input (Max): 5.5V
Frequency - Switching: 700kHz, 1MHz
Part Status: Active
Base Part Number: TPS514
Voltage - Output (Min/Fixed): 0.75V, 0.775V, 0.85V, 0.9V
Package / Case: 24-VFQFN Exposed Pad
Series: D-CAP+™
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Output Configuration: Positive
Voltage - Output (Max): -
Mounting Type: Surface Mount
Supplier Device Package: 24-VQFN (4x4)
Voltage - Input (Min): 4.5V
detail: Buck Switching Regulator IC Positive Programmable 0.75V, 0.775V, 0.85V, 0.9V 1 Output 24-VFQFN Exposed Pad
