دیتاشیت LP38859T-1.2/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP38859 |
|---|---|
| حجم فایل | 2216.766 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 25 |

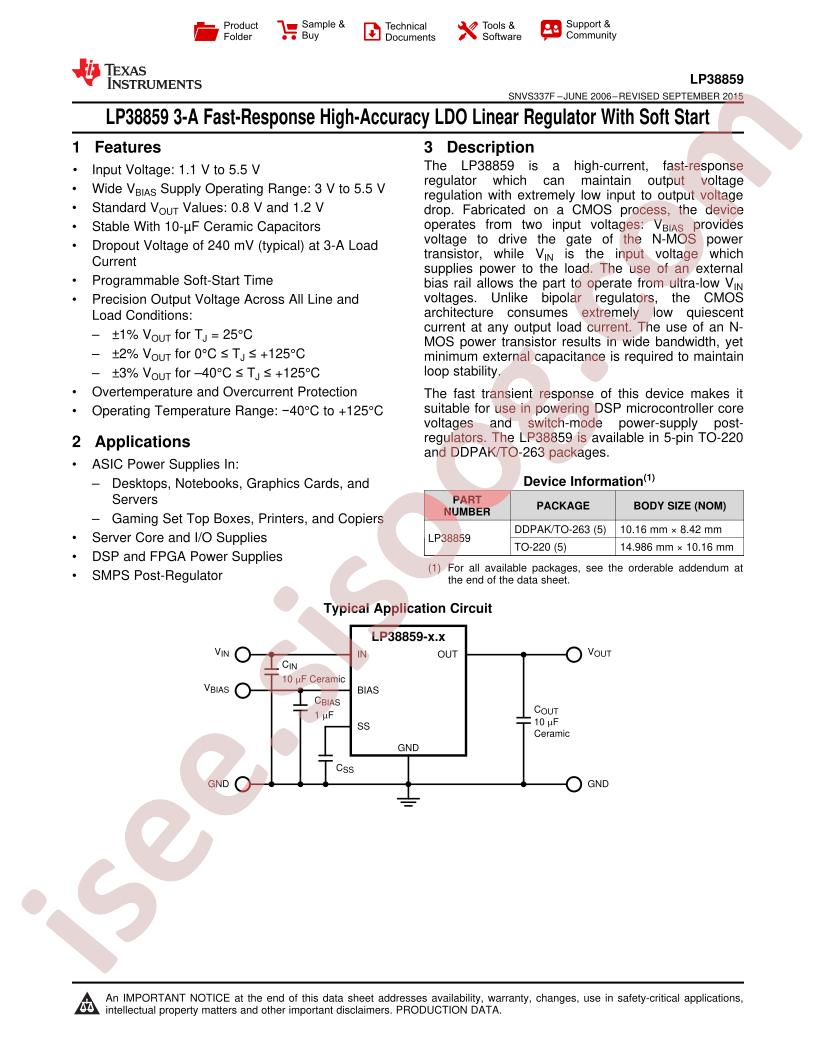

دانلود دیتاشیت LP38859 |
LP38859 Datasheet |
|---|
مشخصات
- Control Features: Soft Start
- Base Part Number: LP38859
- Package / Case: TO-220-5 Formed Leads
- Current - Supply (Max): 15mA
- Part Status: Obsolete
- Current - Output: 3A
- PSRR: 80dB ~ 65dB (120Hz ~ 1kHz)
- Series: -
- Voltage - Output (Min/Fixed): 1.2V
- Mounting Type: Through Hole
- Number of Regulators: 1
- Current - Quiescent (Iq): 8.5mA
- Output Configuration: Positive
- Voltage Dropout (Max): 0.45V @ 3A
- Operating Temperature: -40°C ~ 125°C
- Supplier Device Package: TO-220-5
- Protection Features: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- Manufacturer: Texas Instruments
- Voltage - Input (Max): 5.5V
- Output Type: Fixed
- Packaging: Tube
- Voltage - Output (Max): -
- detail: Linear Voltage Regulator IC 1 Output 3A TO-220-5
