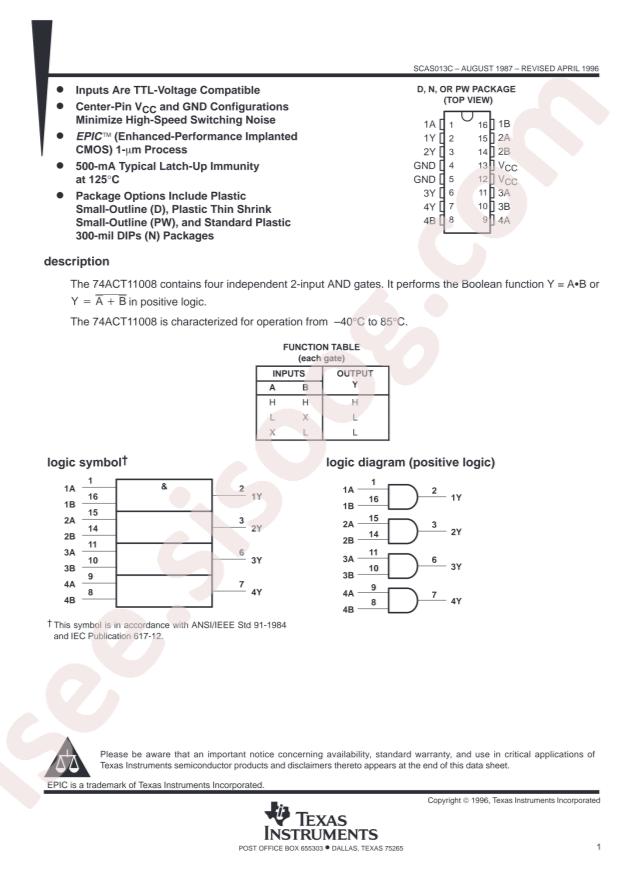

74ACT11008D دیتاشیت

74ACT11008D

مشخصات دیتاشیت

نام دیتاشیت 74ACT11008D
حجم فایل 60.399 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت 74ACT11008D

دانلود دیتاشیت

سایر مستندات

74ACT11008 15 pages

مشخصات فنی

  • RoHS: true
  • Series: 74ACT
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments 74ACT11008D
  • Sink Current: 24mA
  • Source Current: 24mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: And
  • Number of Channels: 4
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 8ns@5V,50pF
  • Quiescent Current (Max): 4uA
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.8V
  • Current - Quiescent (Max): 4µA
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 4
  • Packaging: Tube
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 24mA, 24mA
  • Features: -
  • Base Part Number: 74ACT1
  • Supplier Device Package: 16-SOIC
  • Number of Inputs: 2
  • Logic Type: AND Gate
  • Max Propagation Delay @ V, Max CL: 8ns @ 5V, 50pF
  • detail: AND Gate IC 4 Channel 16-SOIC
