دیتاشیت LM2576(HV)
مشخصات دیتاشیت
| نام دیتاشیت | LM2576(HV) |
|---|---|
| حجم فایل | 4361.759 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
LM2576(HV) |
دانلود دیتاشیت |
|---|
سایر مستندات
LM2576T-5.0 47 pages
TO-220 Leadbend Options 10 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments LM2576T-15/LF03
- Output Type: Fixed
- Input Voltage: 4V~40V
- Output Voltage: 15V
- Number of Outputs: 1
- Switching Frequency: 52kHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO

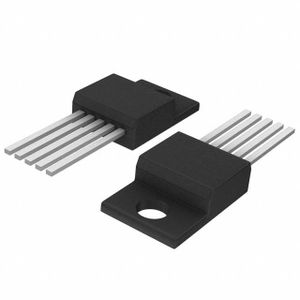

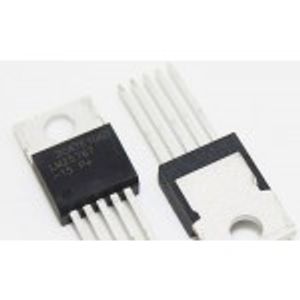

- Package: TO-220-5
- Manufacturer: Texas Instruments
- Current - Output: 3A
- Voltage - Input (Max): 40V
- Frequency - Switching: 52kHz
- Part Status: Active
- Base Part Number: LM2576
- Voltage - Output (Min/Fixed): 15V
- Package / Case: TO-220-5 Formed Leads
- Series: SIMPLE SWITCHER®
- Packaging: Tube
- Synchronous Rectifier: No
- Output Configuration: Positive
- Voltage - Output (Max): -
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-5
- Voltage - Input (Min): 4V
- detail: Buck Switching Regulator IC Positive Fixed 15V 1 Output 3A TO-220-5 Formed Leads
