دیتاشیت OPA453TA-1G3

OPA452,453

مشخصات دیتاشیت

نام دیتاشیت OPA452,453
حجم فایل 970.667 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت OPA452,453

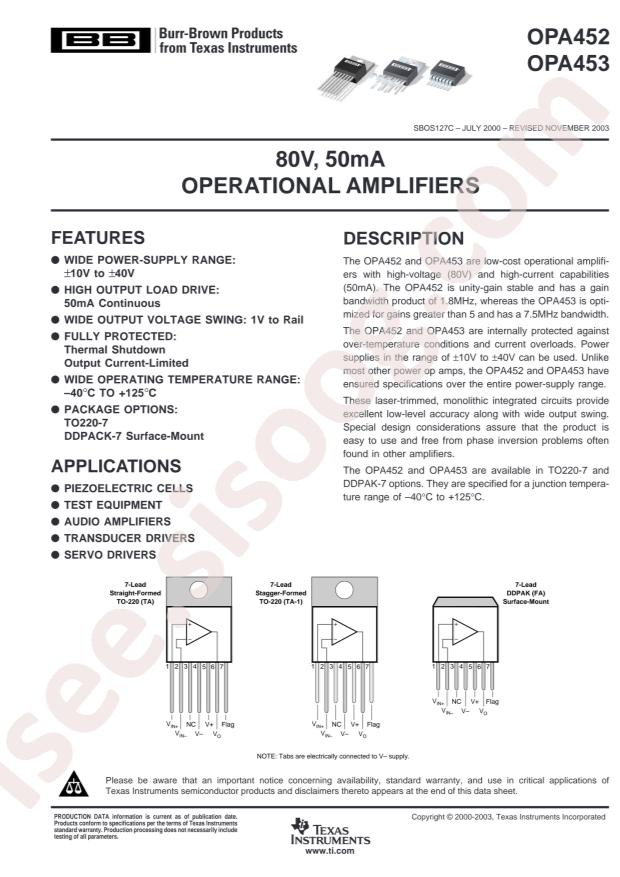

OPA452,453 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: Texas Instruments OPA453TA-1G3
  • -3db Bandwidth: -
  • Output Current: 50mA
  • Number of Circuits: 1
  • Operating Temperature: -40°C~+125°C
  • Current - Input Bias(Ib): 7pA
  • Gain Bandwidth Product(GBP): 7.5MHz
  • Package: TO-220-7(Forming)
  • Manufacturer: Texas Instruments
  • Current - Output / Channel: 50mA
  • Current - Supply: 5.5mA
  • Voltage - Input Offset: 1mV
  • Supplier Device Package: TO-220-7
  • Slew Rate: 38V/µs
  • Amplifier Type: General Purpose
  • Mounting Type: Through Hole
  • Output Type: -
  • Current - Input Bias: 7pA
  • Gain Bandwidth Product: 7.5MHz
  • Base Part Number: OPA453
  • Packaging: Tube
  • Series: -
  • Package / Case: TO-220-7 (Formed Leads)
  • Part Status: Active
  • Voltage - Supply, Single/Dual (±): 20V ~ 80V, ±10V ~ 40V
  • detail: General Purpose Amplifier 1 Circuit TO-220-7
