DCV01 Series دیتاشیت

DCV01 Series

مشخصات دیتاشیت

نام دیتاشیت DCV01 Series
حجم فایل 734.001 کیلوبایت
نوع فایل pdf
تعداد صفحات 29

دانلود دیتاشیت DCV01 Series

دانلود دیتاشیت

سایر مستندات

DCV012405P-U 30 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Datasheet: Texas Instruments DCV010505P-U/700

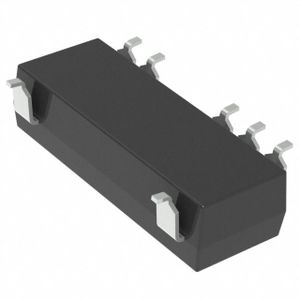

  • Package: SOP-7-2.54mm
  • Manufacturer: Texas Instruments
  • Voltage - Output 4: -
  • Applications: ITE (Commercial)
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
  • Efficiency: 78%
  • Operating Temperature: -40°C ~ 85°C
  • Packaging: Cut Tape (CT)
  • Type: Isolated Module
  • Voltage - Output 2: -
  • Part Status: Active
  • Voltage - Output 1: 5V
  • Number of Outputs: 1
  • Voltage - Input (Min): 4.5V
  • Control Features: Enable, Active High
  • Voltage - Input (Max): 5.5V
  • Current - Output (Max): 200mA
  • Power (Watts): 1W
  • Package / Case: 14-SMD Module, 7 Leads
  • Series: DCV01 (1W)
  • Base Part Number: DCV010505
  • Features: OTP, SCP
  • Voltage - Isolation: 1.5kV
  • Voltage - Output 3: -
  • detail: Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
