دیتاشیت LF2406APZA-GREE
مشخصات دیتاشیت
| نام دیتاشیت | TMS320L(C,F)240xA Datasheet |
|---|---|
| حجم فایل | 1957.138 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 137 |

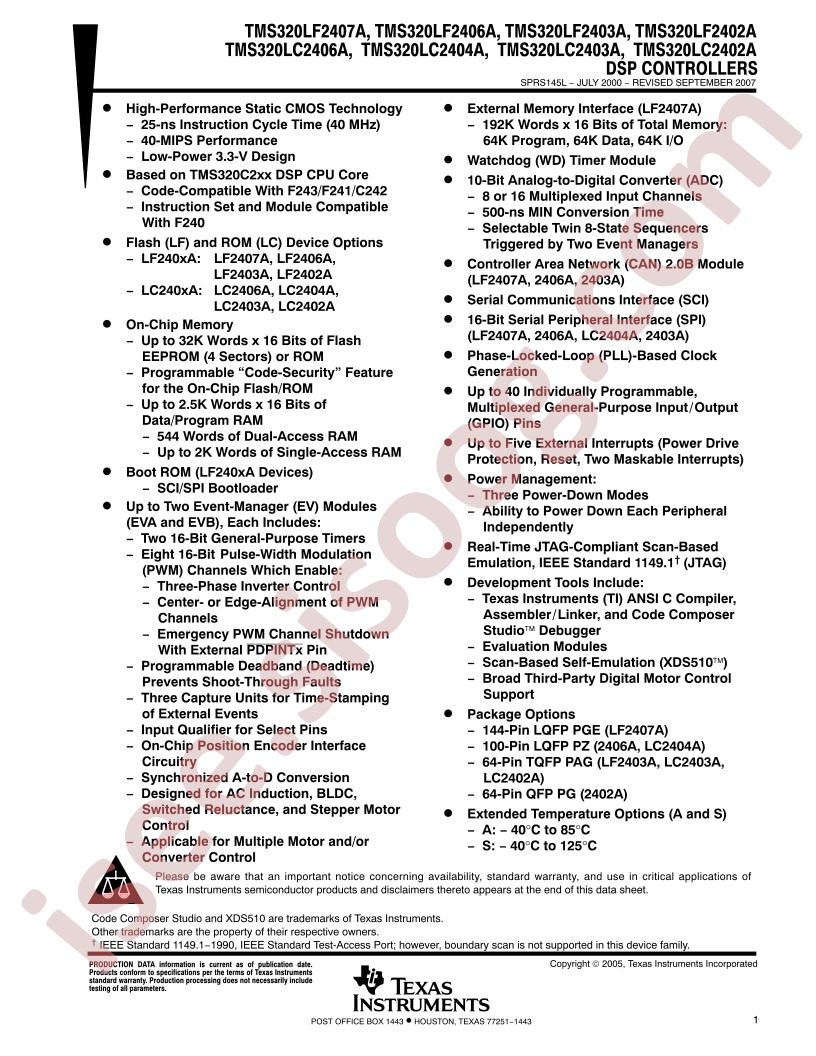

دانلود دیتاشیت TMS320L(C,F)240xA Datasheet |
TMS320L(C,F)240xA Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Single Chip Microcomputer/Microcontroller/Digital Signal Processors / Controllers (DSPs/DSCs)
- FLASH Size: 64KB
- Maximum Speed: 40MHz
- GPIO Ports Number: 41
- Supply Voltage Range: 3V~3.6V
- Operating Temperature Range: -40°C~+125°C
- Package: LQFP-100(14x14)
- Manufacturer: Texas Instruments
- Speed: 40MHz
- Data Converters: A/D 16x10b
- Oscillator Type: Internal
- Package / Case: 100-LQFP
- Packaging: Tray
- Peripherals: POR, PWM, WDT
- Part Status: Active
- Supplier Device Package: 100-LQFP (14x14)
- RAM Size: 5K x 8
- Program Memory Type: FLASH
- Core Size: 16-Bit
- Core Processor: C2xx DSP
- Program Memory Size: 64KB (32K x 16)
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Number of I/O: 41
- Base Part Number: LF240
- Series: C2000™ C24x 16-Bit
- EEPROM Size: -
- Connectivity: CANbus, SCI, SPI, UART/USART
- Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V
- detail: C2xx DSP C2000™ C24x 16-Bit Microcontroller IC 16-Bit 40MHz 64KB (32K x 16) FLASH 100-LQFP (14x14)
