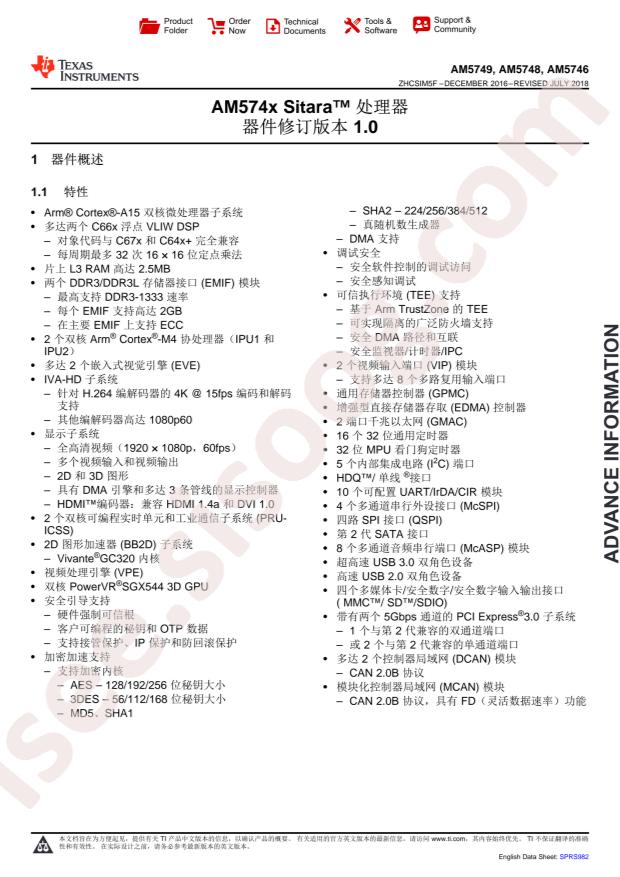

AM5749ABZX دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | AM5749ABZX |
|---|---|
| حجم فایل | 90.248 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 453 |
دانلود دیتاشیت AM5749ABZX |
دانلود دیتاشیت |
|---|
سایر مستندات
AM5746, AM5748, AM5749 Datasheet 459 pages
AM5746, AM5748, AM5749 Errata 96 pages
AM5746, AM5748, AM5749 Tech. Ref. Manual 8078 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: ARM-ASeries
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Texas Instruments AM5749ABZX
- PWM (Bit): -
- LCD Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 1.5GHz
- GPIO Ports Number: -
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: -
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: -
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: -
- Infrared Data Association: -
- Operating Temperature Range: 0°C~+90°C
- Secure Digital Input and Output: -
- Package: FCBGA-760
- Manufacturer: Texas Instruments
- Speed: 1.5GHz
- USB: USB 2.0 (2), USB 3.0 (2)
- RAM Controllers: DDR3, DDR3L
- Co-Processors/DSP: ARM® Cortex®-M4, C66x
- Graphics Acceleration: Yes
- Display & Interface Controllers: HDMI, LCD, Video
- Core Processor: ARM® Cortex®-A15
- Number of Cores/Bus Width: 1 Core, 32-Bit
- Security Features: ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC
- Operating Temperature: 0°C ~ 90°C (TJ)
- Series: Sitara™
- Package / Case: 760-LFBGA
- Additional Interfaces: CAN, HDQ/1-Wire, I²C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART
- Part Status: Active
- Supplier Device Package: 760-FCBGA (23x23)
- SATA: SATA 3Gbps (1)
- Ethernet: GbE (2)
- Base Part Number: AM5749
- Voltage - I/O: 1.35V, 1.5V, 1.8V, 3.3V
- detail: ARM® Cortex®-A15 Microprocessor IC Sitara™ 1 Core, 32-Bit 1.5GHz 760-FCBGA (23x23)
