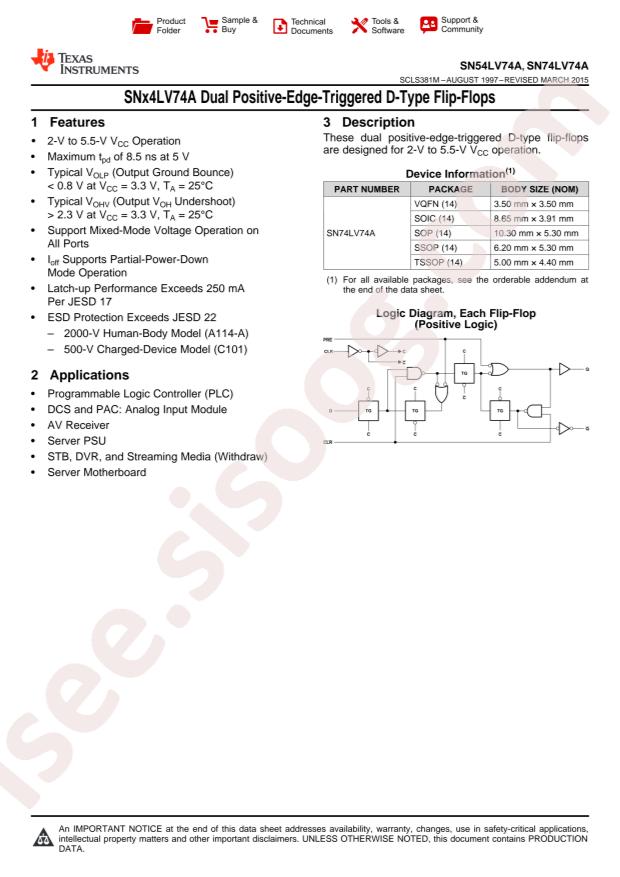

SN74LV74ARGYR دیتاشیت

SN74LV74ARGYR

مشخصات دیتاشیت

نام دیتاشیت SN74LV74ARGYR
حجم فایل 72.192 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

دانلود دیتاشیت SN74LV74ARGYR

دانلود دیتاشیت

سایر مستندات

SN54LV74A, SN74LV74A 30 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Flip Flops
  • Datasheet: Texas Instruments SN74LV74ARGYR
  • Package: QFN-14-EP(3.5x3.5)
  • Manufacturer: Texas Instruments
  • Number of Elements: 2
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Function: Set(Preset) and Reset
  • Supplier Device Package: 14-VQFN (3.5x3.5)
  • Input Capacitance: 2pF
  • Current - Output High, Low: 12mA, 12mA
  • Voltage - Supply: 2V ~ 5.5V
  • Current - Quiescent (Iq): 20µA
  • Output Type: Differential
  • Mounting Type: Surface Mount
  • Type: D-Type
  • Packaging: Cut Tape (CT)
  • Number of Bits per Element: 1
  • Trigger Type: Positive Edge
  • Series: 74LV
  • Max Propagation Delay @ V, Max CL: 9.3ns @ 5V, 50pF
  • Clock Frequency: 140MHz
  • Base Part Number: SN74LV74
  • Part Status: Active
  • Package / Case: 14-VFQFN Exposed Pad
  • detail: Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-VFQFN Exposed Pad
