دیتاشیت LM324LVIDR
مشخصات دیتاشیت
| نام دیتاشیت | LM321LV, LM324LV, LM358LV |
|---|---|
| حجم فایل | 2801.71 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 47 |
دانلود دیتاشیت LM321LV, LM324LV, LM358LV |

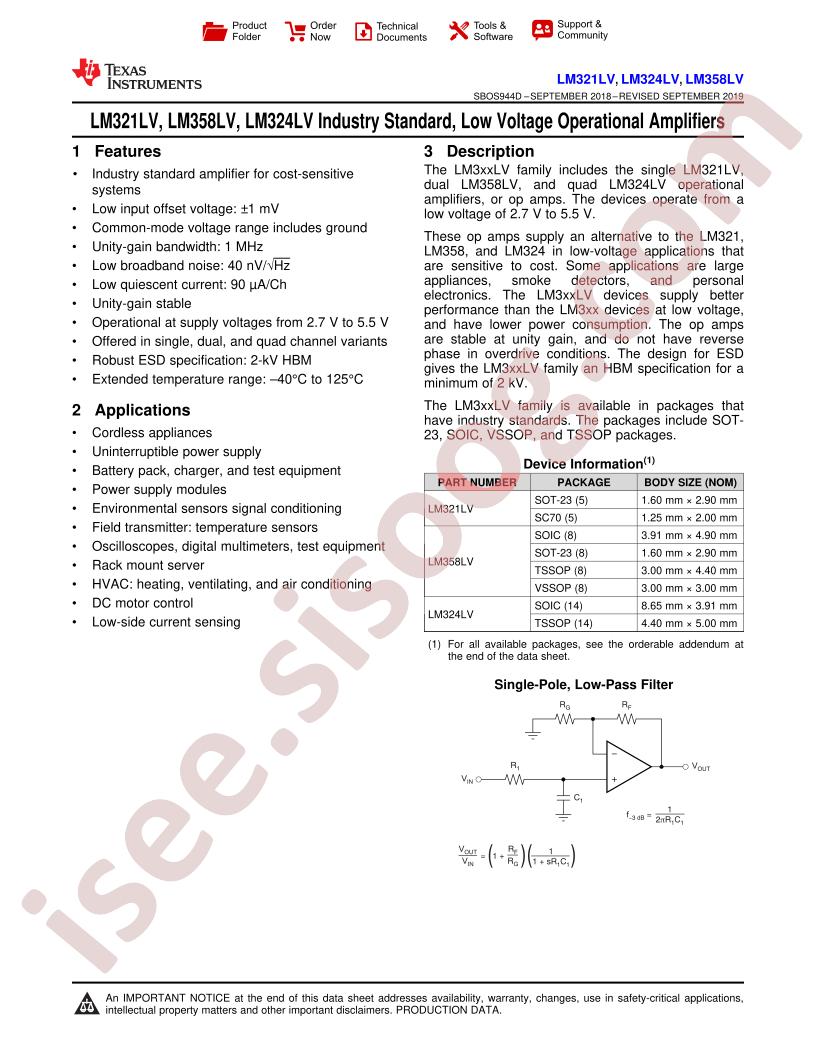

LM321LV, LM324LV, LM358LV Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments LM324LVIDR
- -3db Bandwidth: -
- Output Current: 40mA
- Number of Circuits: 4
- Operating Temperature: -40°C~+125°C
- Current - Input Bias(Ib): 15pA
- Gain Bandwidth Product(GBP): 1MHz
- Package: SOP-14
- Manufacturer: Texas Instruments
- Current - Output / Channel: 40mA
- Current - Supply: 90µA
- Voltage - Input Offset: 1mV
- Supplier Device Package: 14-SOIC
- Slew Rate: 1.5V/µs
- Amplifier Type: General Purpose
- Mounting Type: Surface Mount
- Output Type: -
- Current - Input Bias: 15pA
- Gain Bandwidth Product: 1MHz
- Base Part Number: LM324
- Packaging: Cut Tape (CT)
- Series: -
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V
- detail: General Purpose Amplifier 4 Circuit 14-SOIC
