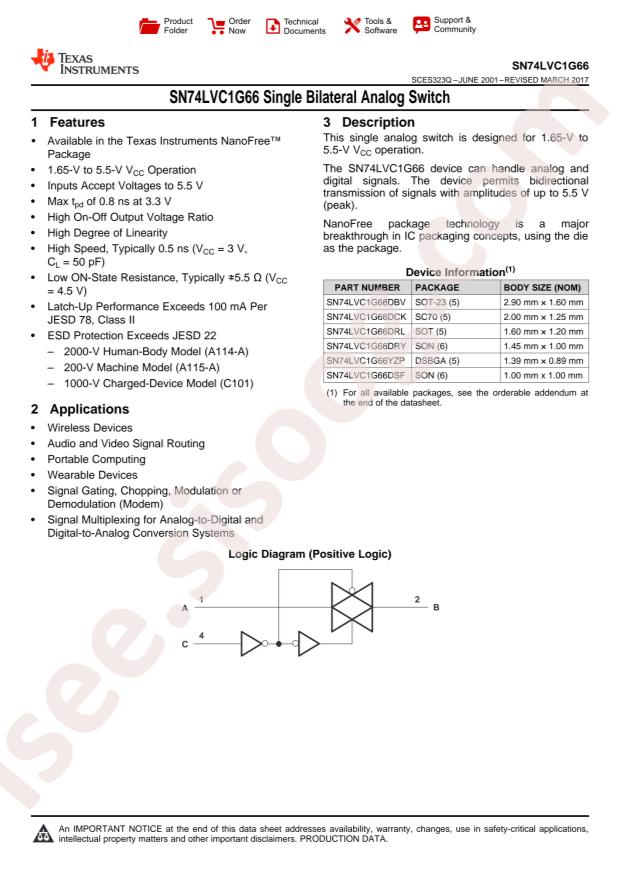

- دیتاشیت SN74LVC1G66DBVRE4
دیتاشیت SN74LVC1G66DBVRE4
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC1G66DBVRE4 |
|---|---|
| حجم فایل | 80.729 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 40 |
SN74LVC1G66DBVRE4 |
دانلود دیتاشیت |
|---|
سایر مستندات
SN74LVC1G66 39 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Texas Instruments SN74LVC1G66DBVRE4
- Turn-on time: 4.2ns
- Turn-off time: 5ns
- Supply Voltage: 1.65V~5.5V
- Switch Circuit: SPST(SPST)-Normal Open
- Number of Channels: 1
- On-State Resistance (Max): 10Ω
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Multiplexer/Demultiplexer Circuit: 1:1
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -
- Voltage - Supply, Dual (V±): -
- Packaging: Cut Tape (CT)
- Channel-to-Channel Matching (ΔRon): -
- Charge Injection: -
- Supplier Device Package: SOT-23-5
- -3db Bandwidth: 300MHz
- Base Part Number: SN74LVC1G
- Mounting Type: Surface Mount
- Channel Capacitance (CS(off), CD(off)): 6pF
- Switch Time (Ton, Toff) (Max): 4.2ns, 5ns
- Operating Temperature: -40°C ~ 85°C (TA)
- Number of Circuits: 1
- Series: -
- Package / Case: SC-74A, SOT-753
- Part Status: Active
- detail: 1 Circuit IC Switch 1:1 10Ohm SOT-23-5
