RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

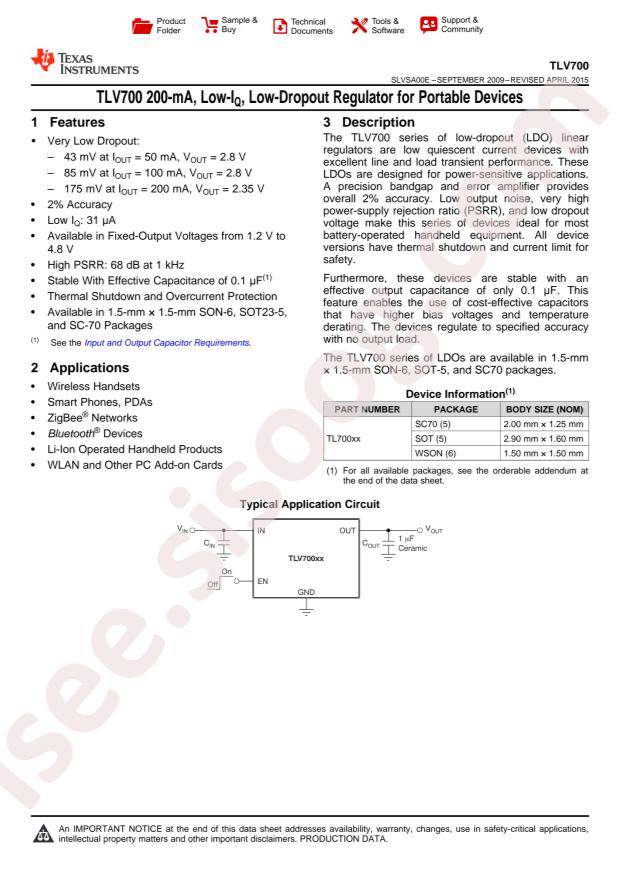

Datasheet: Texas Instruments TLV70012DCKR
Output Type: Fixed
Output Current: 200mA
Output Voltage: 1.2V
Dropout Voltage: 250mV@(200mA)
Output Polarity: Positive
Number of Outputs: 1
Maximum Input Voltage: 5.5V
Operating Temperature: -40°C~+125°C@(Tj)
Quiescent Current (Ground Current): 55uA
Power Supply Rejection Ratio (PSRR): 68dB@(1kHz)
Package: SC-70-5
Manufacturer: Texas Instruments
Series: -
Voltage - Output (Max): -
Output Configuration: Positive
Voltage Dropout (Max): 0.25V @ 200mA
Packaging: Cut Tape (CT)
Voltage - Output (Min/Fixed): 1.2V
Protection Features: Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
PSRR: 68dB (1kHz)
Supplier Device Package: SC-70-5
Current - Quiescent (Iq): 55µA
Base Part Number: TLV700
Mounting Type: Surface Mount
Number of Regulators: 1
Voltage - Input (Max): 5.5V
Current - Output: 200mA
Part Status: Active
Current - Supply (Max): 270µA
Control Features: Enable
Package / Case: 5-TSSOP, SC-70-5, SOT-353
detail: Linear Voltage Regulator IC 1 Output 200mA SC-70-5
