- دیتاشیت SN74LV86ADR

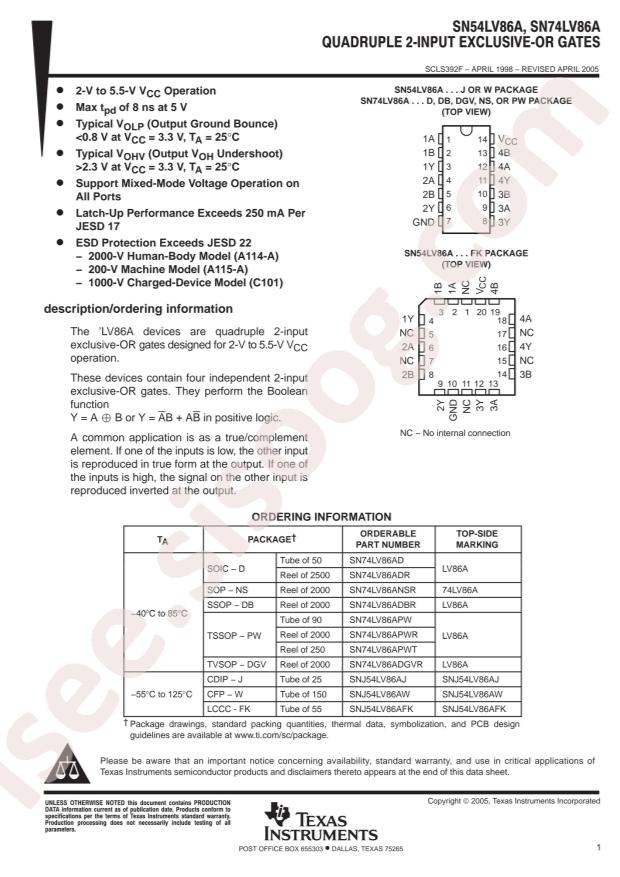

SN74LV86ADR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LV86ADR |
|---|---|
| حجم فایل | 93.321 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت SN74LV86ADR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54LV86A, SN74LV86A 24 pages
مشخصات فنی
- RoHS: true
- Series: 74LV
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74LV86ADR
- Sink Current: 12mA
- Source Current: 12mA
- Supply Voltage: 2V~5.5V
- Logic Gate Type: XORGate
- Number of Channels: 4
- Low Level Range (VIL): 0.5V
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 1.5V
- Propagation Delay Time: 8.8ns@5V,50pF
- Quiescent Current (Max): 20uA
- Package: SOP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 1.5V
- Base Part Number: SN74LV86
- Supplier Device Package: 14-SOIC
- Logic Level - Low: 0.5V
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Current - Quiescent (Max): 20µA
- Current - Output High, Low: 12mA, 12mA
- Features: -
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Voltage - Supply: 2V ~ 5.5V
- Number of Circuits: 4
- Max Propagation Delay @ V, Max CL: 8.8ns @ 5V, 50pF
- Number of Inputs: 2
- Part Status: Active
- Logic Type: XOR (Exclusive OR)
- detail: XOR (Exclusive OR) IC 4 Channel 14-SOIC
