- دیتاشیت SN74HC240PWR

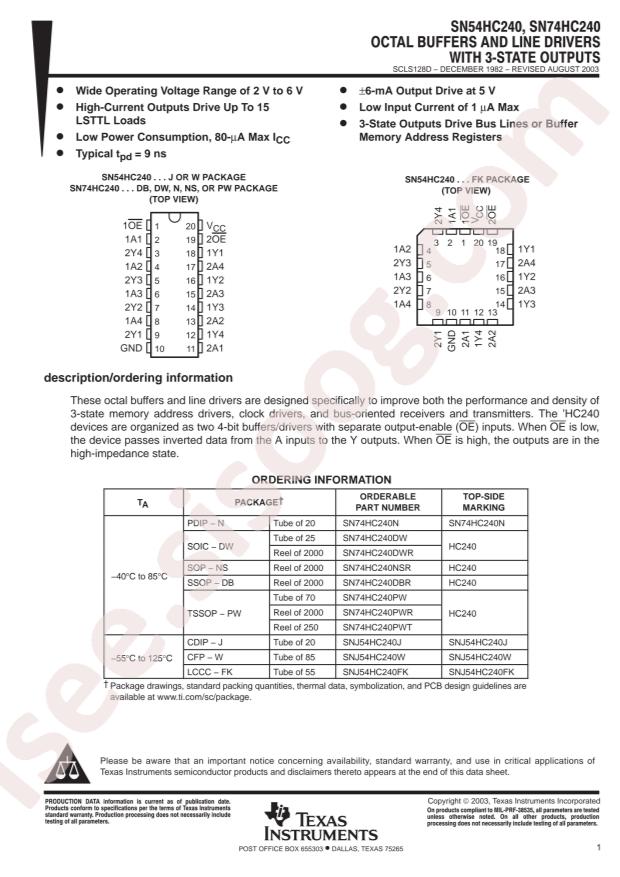

SN74HC240PWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HC240PWR |
|---|---|
| حجم فایل | 91.859 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت SN74HC240PWR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HC240, SN74HC240 24 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74HC240PWR
- output type: Tri-State
- Logic Family: 74HC
- Sink Current: 7.8mA
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Number of Elements: 2
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 4
- Package: TSSOP-20
- Manufacturer: Texas Instruments
- Supplier Device Package: 20-TSSOP
- Series: 74HC
- Mounting Type: Surface Mount
- Base Part Number: SN74HC2
- Packaging: Cut Tape (CT)
- Current - Output High, Low: 7.8mA, 7.8mA
- Input Type: -
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Part Status: Active
- Logic Type: Buffer, Inverting
- Voltage - Supply: 2V ~ 6V
- detail: Buffer, Inverting 2 Element 4 Bit per Element 3-State Output 20-TSSOP
