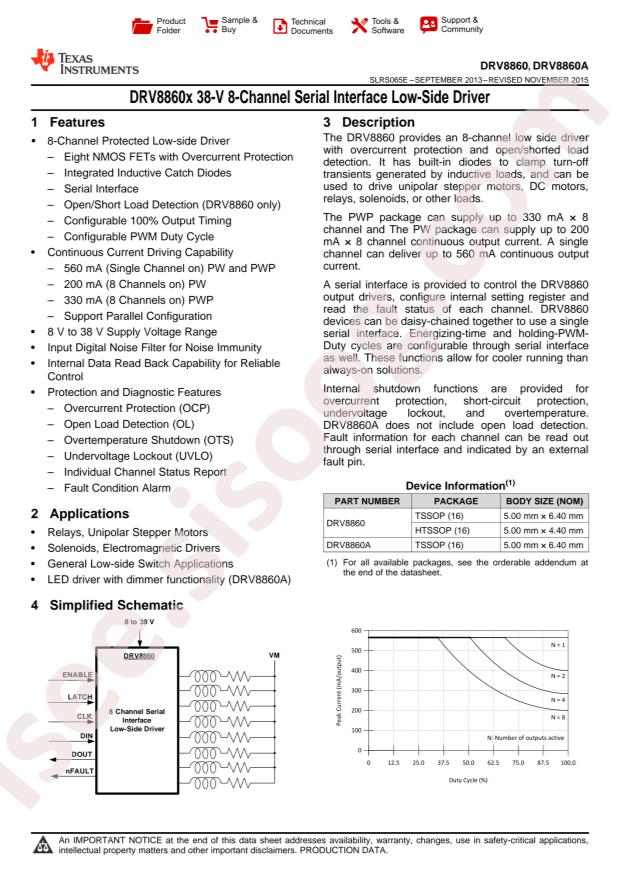

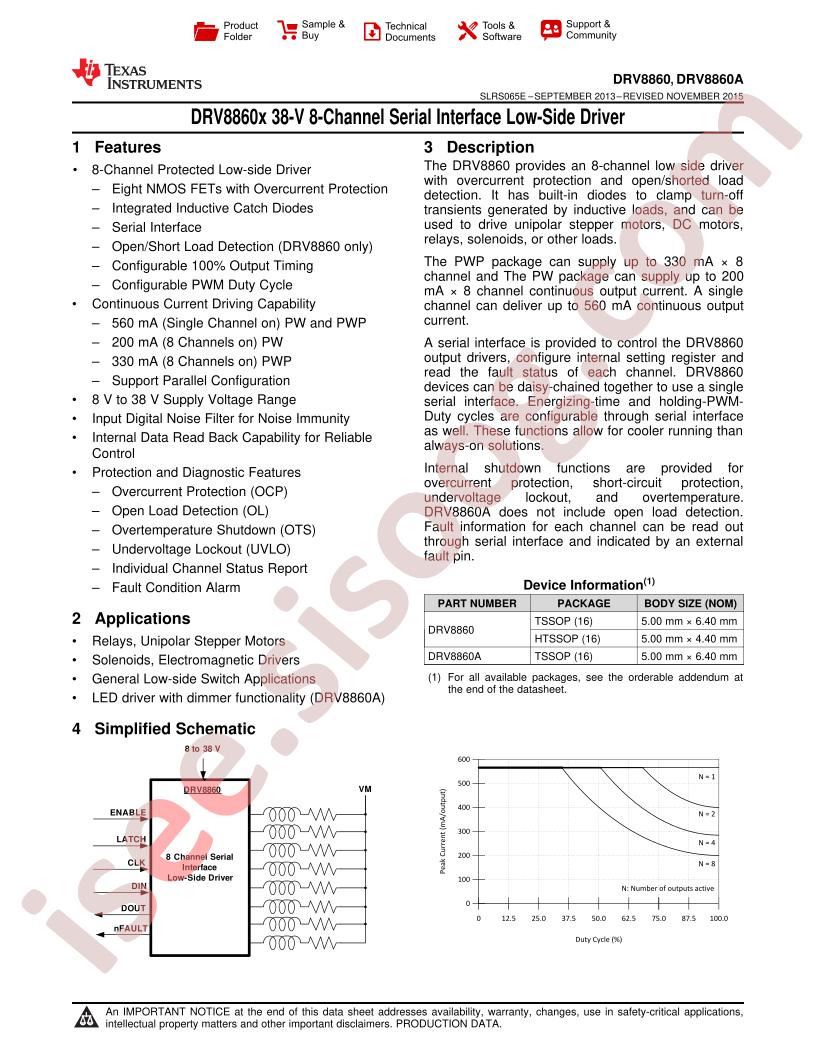

دیتاشیت DRV8860PWPR

DRV8860 Datasheet

مشخصات دیتاشیت

نام دیتاشیت DRV8860 Datasheet
حجم فایل 2142.58 کیلوبایت
نوع فایل pdf
تعداد صفحات 45

دانلود دیتاشیت DRV8860 Datasheet

DRV8860 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV8860PWPR
  • Interface: SPI,STEP/DIR
  • Output Current: 330mA
  • Supply Voltage: 8V~38V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: TSSOP-16-EP
  • Manufacturer: Texas Instruments
  • Motor Type - Stepper: Unipolar
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Supplier Device Package: 16-HTSSOP
  • Applications: General Purpose
  • Step Resolution: -
  • Voltage - Load: 8V ~ 38V
  • Mounting Type: Surface Mount
  • Voltage - Supply: 8V ~ 38V
  • Packaging: Cut Tape (CT)
  • Motor Type - AC, DC: Brushed DC
  • Output Configuration: Low Side (8)
  • Series: -
  • Base Part Number: DRV8860
  • Package / Case: 16-PowerTSSOP (0.173", 4.40mm Width)
  • Current - Output: 330mA
  • Part Status: Active
  • Technology: NMOS
  • detail: Unipolar Motor Driver NMOS SPI 16-HTSSOP
