SN74HCT14DBR دیتاشیت

SN74HCT14DBR

مشخصات دیتاشیت

نام دیتاشیت SN74HCT14DBR
حجم فایل 60.116 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت SN74HCT14DBR

دانلود دیتاشیت

سایر مستندات

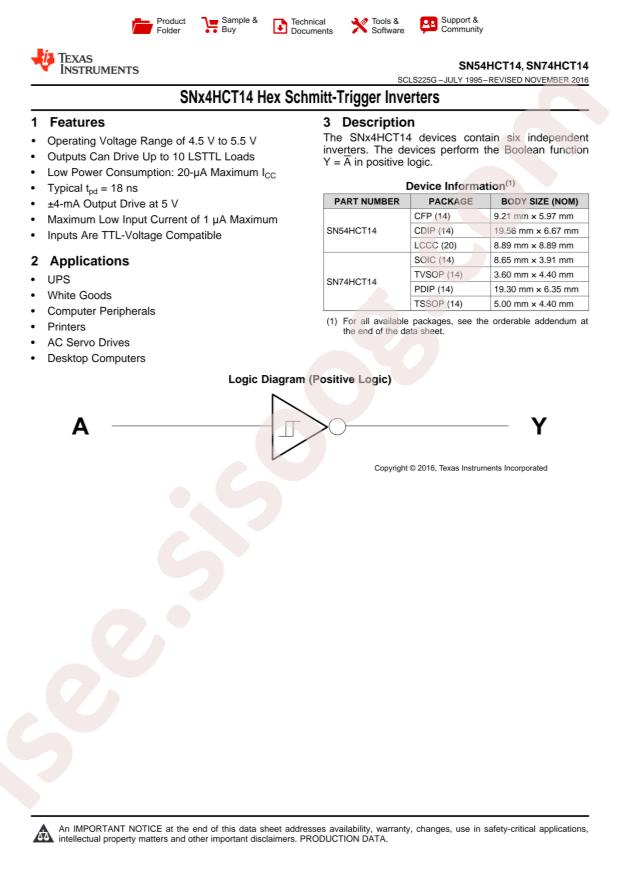

SN54HCT14, SN74HCT14 29 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HCT
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74HCT14DBR
  • Input Type: Schmitt Trigger
  • Sink Current: 4mA
  • Source Current: 4mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Supply Current (Max): 2uA
  • Low level range (VIL): 0.5V~0.6V
  • Max Propagation Delay: 30ns@5.5V,50pF
  • Operating Temperature: -40°C~+85°C
  • High level range (VIH): 1.9V~2.1V
  • Supply Voltage(Single): 4.5V~5.5V
  • Package: SSOP-14
  • Manufacturer: Texas Instruments
  • Logic Level - High: 1.9V ~ 2.1V
  • Base Part Number: SN74HCT
  • Supplier Device Package: 14-SSOP
  • Logic Level - Low: 0.5V ~ 0.6V
  • Package / Case: 14-SSOP (0.209", 5.30mm Width)
  • Current - Quiescent (Max): 2µA
  • Current - Output High, Low: 4mA, 4mA
  • Features: Schmitt Trigger
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 4.5V ~ 5.5V
  • Max Propagation Delay @ V, Max CL: 30ns @ 5.5V, 50pF
  • Part Status: Active
  • Logic Type: Inverter
  • detail: Inverter IC 6 Channel Schmitt Trigger 14-SSOP
