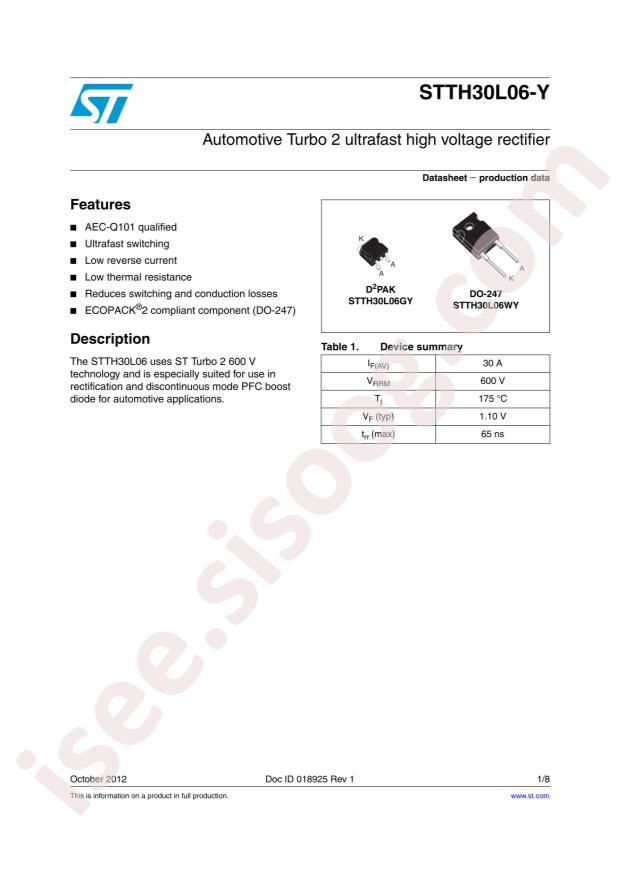

دیتاشیت STTH30L06GY-TR
مشخصات دیتاشیت
| نام دیتاشیت |
STTH30L06-Y
|
| حجم فایل |
106.79
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - General Purpose
-
Datasheet:
STMicroelectronics STTH30L06GY-TR
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
600V
-
Forward Voltage (Vf@If):
1.55V@30A
-
Reverse Leakage Current:
25uA@600V
-
Average Rectified Current (Io):
30A
-
Package:
D2PAK
-
Manufacturer:
STMicroelectronics
-
Series:
Automotive, AEC-Q101
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io):
30A
-
Voltage - Forward (Vf) (Max) @ If:
1.55V @ 30A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Reverse Recovery Time (trr):
90ns
-
Current - Reverse Leakage @ Vr:
25µA @ 600V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D²PAK
-
Operating Temperature - Junction:
-40°C ~ 175°C
-
Base Part Number:
STTH30
-
detail:
Diode Standard 600V 30A Surface Mount D²PAK
