L6920DCTR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت L6920DCTR	دانلود دیتاشیت

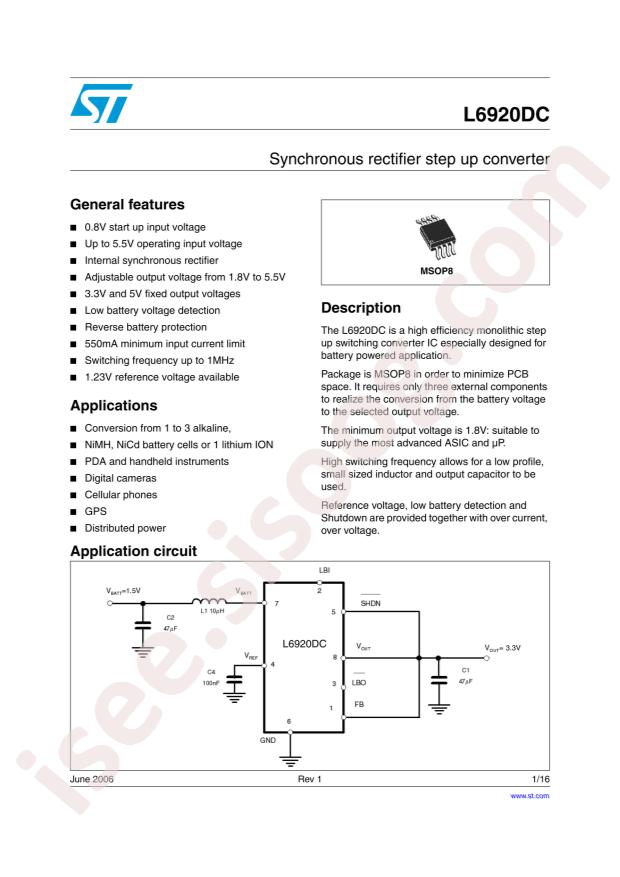

L6920DC 16 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType
Topology: Boost
Datasheet: STMicroelectronics L6920DCTR
Output Type: 可调和固定
Input Voltage: 0.6V~5.5V
Output Voltage: 1.8V~5.5V
Number of Outputs: 1
Switching Frequency: -
Output Current (Max): 800mA
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes

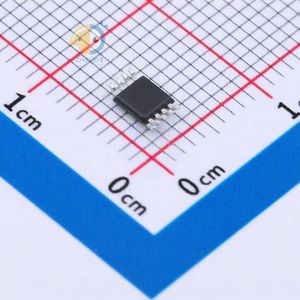

Package: MSOP-8
Manufacturer: STMicroelectronics
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 0.6V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.8V (3.3V, 5V)
Voltage - Output (Max): 5.5V
Current - Output: 800mA (Switch)
Frequency - Switching: -
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 8-MSOP
Base Part Number: L6920
detail: Boost Switching Regulator IC Positive Adjustable (Fixed) 1.8V (3.3V, 5V) 1 Output 800mA (Switch) 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
