VNH5200ASTR-E دیتاشیت

VNH5200ASTR-E

مشخصات دیتاشیت

نام دیتاشیت VNH5200ASTR-E
حجم فایل 76.135 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

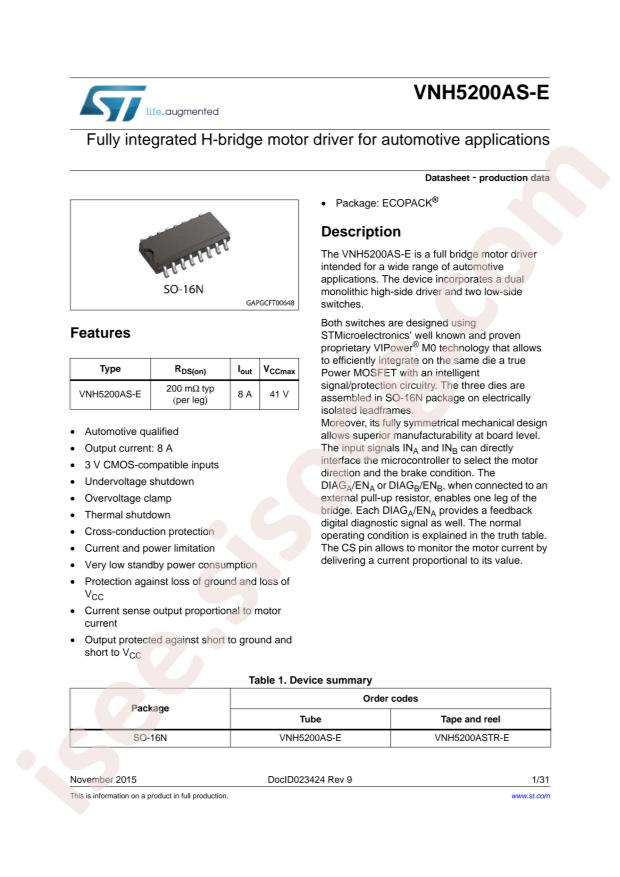

مشاهده دیتاشیت VNH5200ASTR-E

دانلود دیتاشیت

سایر مستندات

VNH5200AS-E 31 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: STMicroelectronics VNH5200ASTR-E
  • Interface: -
  • Output Current: 8A
  • Supply Voltage: 5.5V~18V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: SOP-16
  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Technology: Power MOSFET
  • Step Resolution: -
  • Applications: Automotive
  • Current - Output: 8A
  • Voltage - Supply: 5.5V ~ 18V
  • Voltage - Load: 5.5V ~ 18V
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SO
  • Base Part Number: VNH5200
  • detail: Motor Driver Power MOSFET On/Off 16-SO
