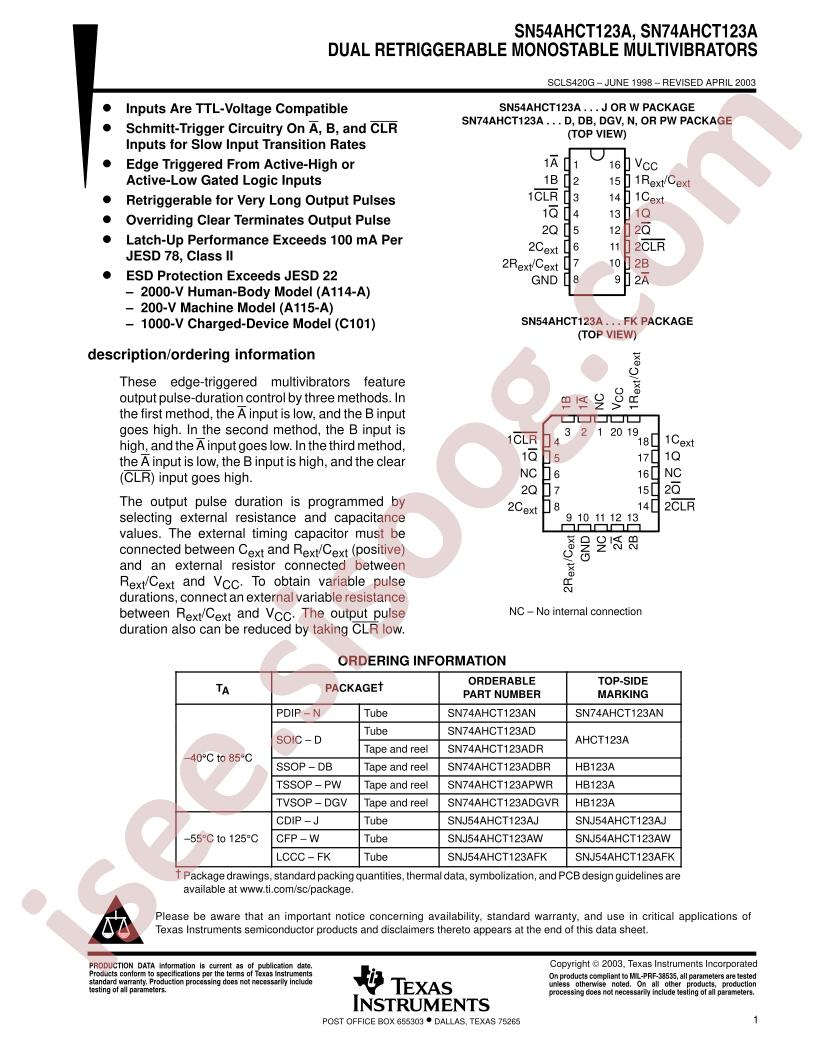

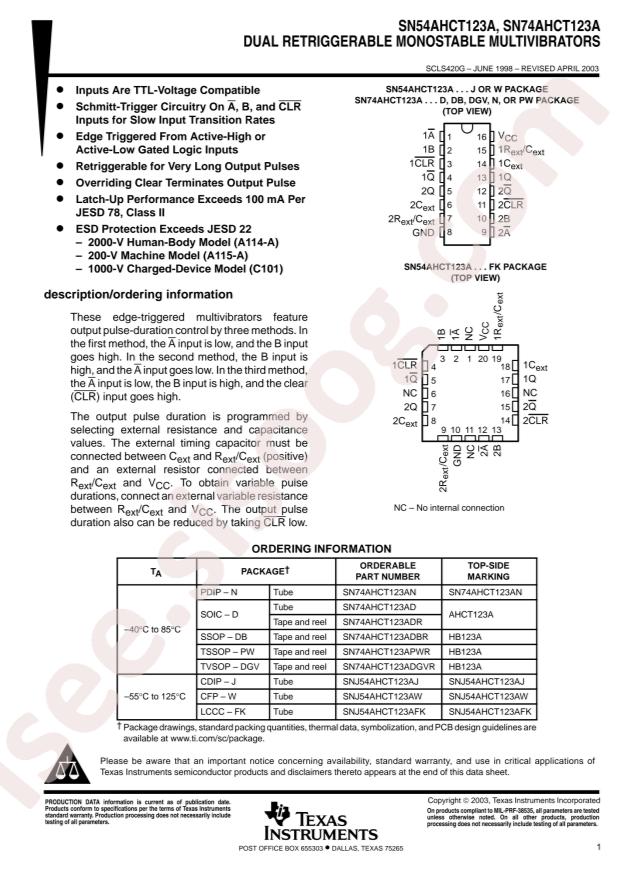

SN74AHCT123AD دیتاشیت

SN74AHCT123AD

مشخصات دیتاشیت

نام دیتاشیت SN74AHCT123AD
حجم فایل 112.492 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

دانلود دیتاشیت SN74AHCT123AD

دانلود دیتاشیت

سایر مستندات

SN54/74AHCT123A 27 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Monostable Multivibrators
  • Datasheet: Texas Instruments SN74AHCT123APWR
  • Input Type: Schmitt Trigger
  • Logic Family: 74AHCT
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: Monostable
  • Propagation Delay: 5.3ns
  • Number Of Channels: 2
  • OperatingTemperature: -40°C~+85°C
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Base Part Number: SN74AHCT
  • Supplier Device Package: 16-TSSOP
  • Schmitt Trigger Input: Yes
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Series: 74AHCT
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Operating Temperature: -40°C ~ 85°C
  • Current - Output High, Low: 8mA, 8mA
  • Independent Circuits: 2
  • Part Status: Discontinued at Digi-Key
  • Logic Type: Monostable
  • Voltage - Supply: 4.5V ~ 5.5V
  • detail: Monostable Multivibrator 5.3ns 16-TSSOP
