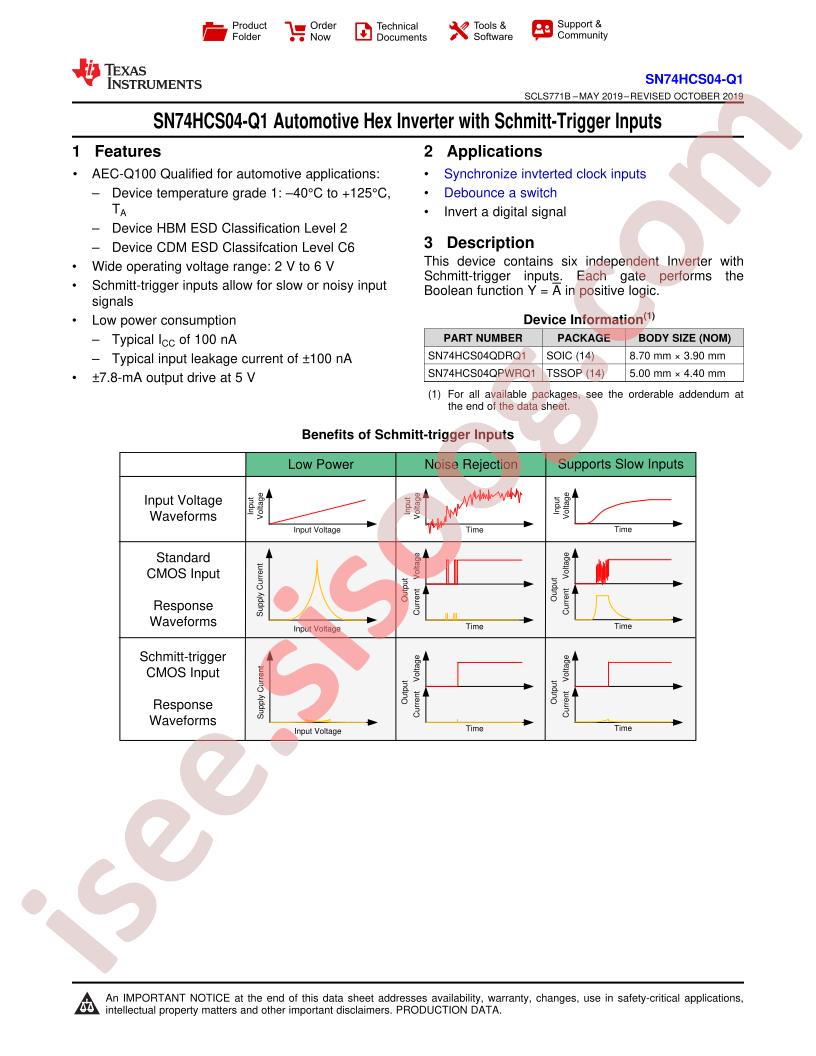

SN74HCS04-Q1 Datasheet دیتاشیت

SN74HCS04-Q1 Datasheet

مشخصات دیتاشیت

نام دیتاشیت SN74HCS04-Q1 Datasheet
حجم فایل 1024.675 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

مشاهده دیتاشیت SN74HCS04-Q1 Datasheet

دانلود دیتاشیت

سایر مستندات

SN74HCS04QPWRQ1 29 pages

مشخصات فنی

  • RoHS: true
  • Series: 74HCS
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74HCS04QDRQ1
  • Sink Current: 7.8mA
  • Source Current: 7.8mA
  • Number of channels: 6
  • Supply Current (Max): 2uA
  • Low level range (VIL): 1V~3V
  • Max Propagation Delay: 16ns@6V,50pF
  • Operating Temperature: 40°C~+125°C
  • High level range (VIH): 1.5V~4.2V
  • Supply Voltage(Single): 2V~6V
  • Package: SOIC-14
  • Manufacturer: Texas Instruments
  • Logic Level - High: 1.5V ~ 4.2V
  • Base Part Number: SN74HCS
  • Supplier Device Package: 14-SOIC
  • Logic Level - Low: 1V ~ 3V
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Current - Quiescent (Max): 2µA
  • Current - Output High, Low: 7.8mA, 7.8mA
  • Features: Schmitt Trigger Input
  • Mounting Type: Surface Mount
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 2V ~ 6V
  • Number of Circuits: 6
  • Max Propagation Delay @ V, Max CL: 16ns @ 6V, 50pF
  • Number of Inputs: 6
  • Part Status: Active
  • Logic Type: Inverter
  • detail: Inverter IC 6 Channel Schmitt Trigger Input 14-SOIC
