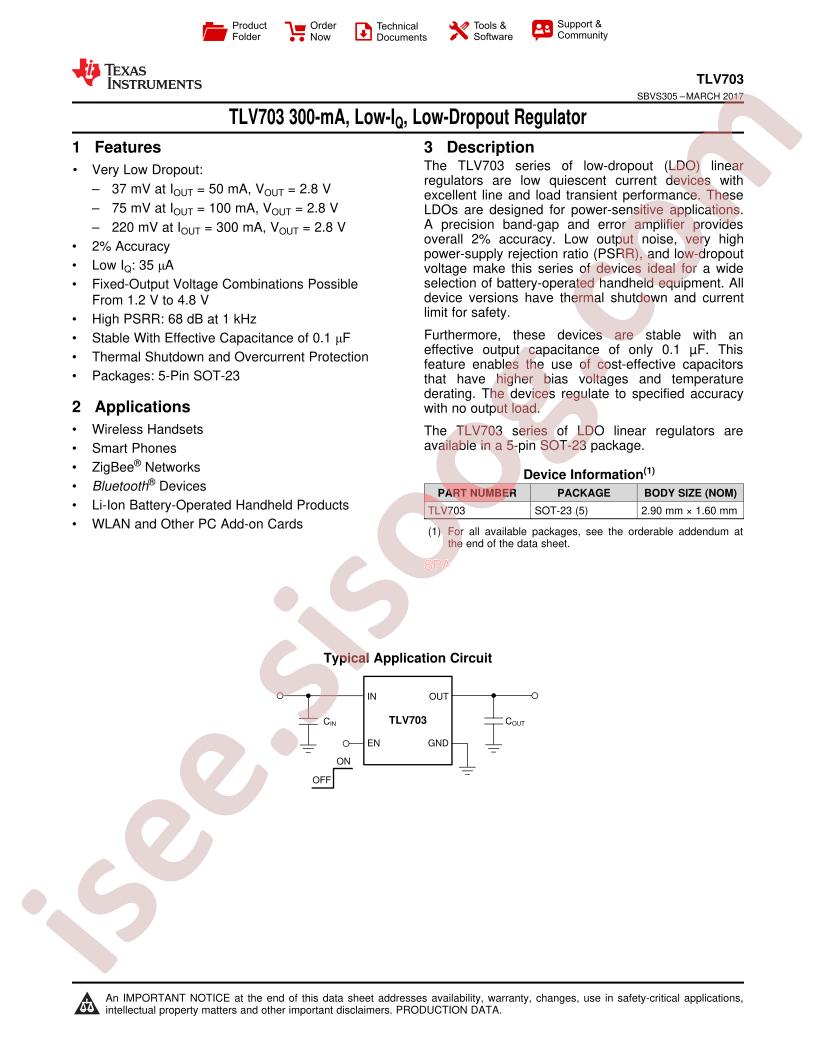

TLV703 Datasheet دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TLV703 Datasheet
|
|
حجم فایل
|
1068.34
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

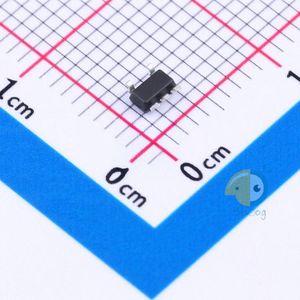

Texas Instruments TLV70312DBVR
-
Output Current:
300mA
-
Output Voltage:
1.2V
-
Dropout Voltage:
0.375V@(300mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
55uA
-
Power Supply Rejection Ratio (PSRR):
68dB@(1kHz)
-
Package:
SOT-23-5
-
Manufacturer:
Texas Instruments
-
Series:
-
-
Voltage - Output (Max):
-
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Voltage Dropout (Max):
0.375V @ 300mA
-
Packaging:
Cut Tape (CT)
-
Voltage - Output (Min/Fixed):
1.2V
-
Protection Features:
Over Current
-
PSRR:
68dB (1kHz)
-
Supplier Device Package:
SOT-23-5
-
Current - Quiescent (Iq):
55µA
-
Base Part Number:
TLV703
-
Mounting Type:
Surface Mount
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Current - Output:
300mA
-
Part Status:
Active
-
Current - Supply (Max):
370µA
-
Control Features:
Current Limit
-
Package / Case:
SC-74A, SOT-753
-
detail:
Linear Voltage Regulator IC 1 Output 300mA SOT-23-5
