L6738ATR دیتاشیت

L6738ATR

مشخصات دیتاشیت

نام دیتاشیت L6738ATR
حجم فایل 76.133 کیلوبایت
نوع فایل pdf
تعداد صفحات 32

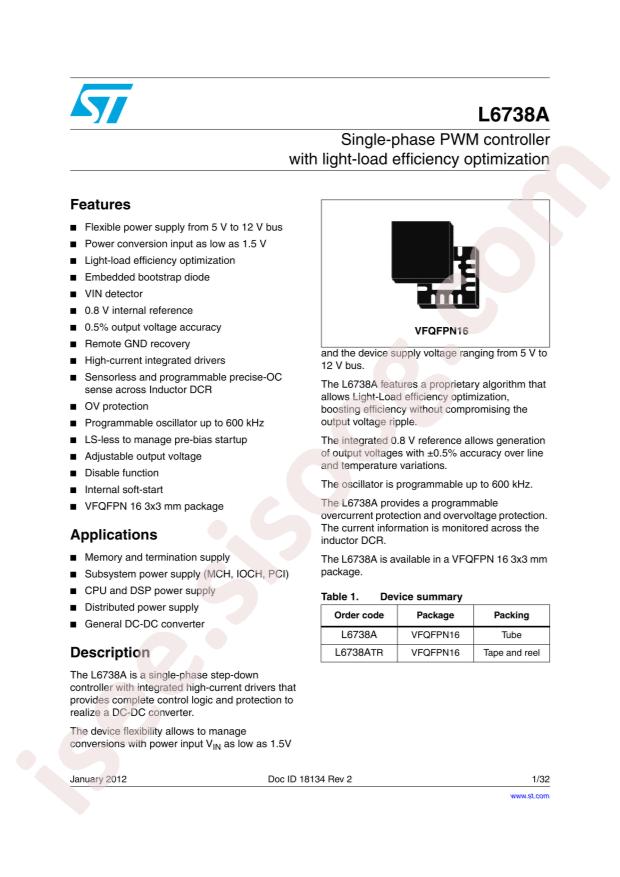

مشاهده دیتاشیت L6738ATR

دانلود دیتاشیت

سایر مستندات

L6738A 32 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: Step-down type
  • Topology: Step-down
  • Datasheet: STMicroelectronics L6738ATR
  • Output Type: -
  • Number of Outputs: 1
  • Switching Frequency: 200kHz
  • Operating Temperature: -40°C~+125°C@(TJ)
  • Synchronous Rectification: Yes
  • Package: VFQFPN-16(3x3)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Phases: 1
  • Voltage - Supply (Vcc/Vdd): 5V ~ 12V
  • Frequency - Switching: 200kHz
  • Duty Cycle (Max): 100%
  • Synchronous Rectifier: Yes
  • Clock Sync: No
  • Serial Interfaces: -
  • Control Features: Enable, Frequency Control, Phase Control, Power Good
  • Mounting Type: Surface Mount
  • Package / Case: 16-VFQFN Exposed Pad
  • Supplier Device Package: 16-VFQFPN (3x3)
  • Base Part Number: L6738
  • detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-VFQFPN (3x3)
