STBB2J30-R دیتاشیت

مشخصات دیتاشیت

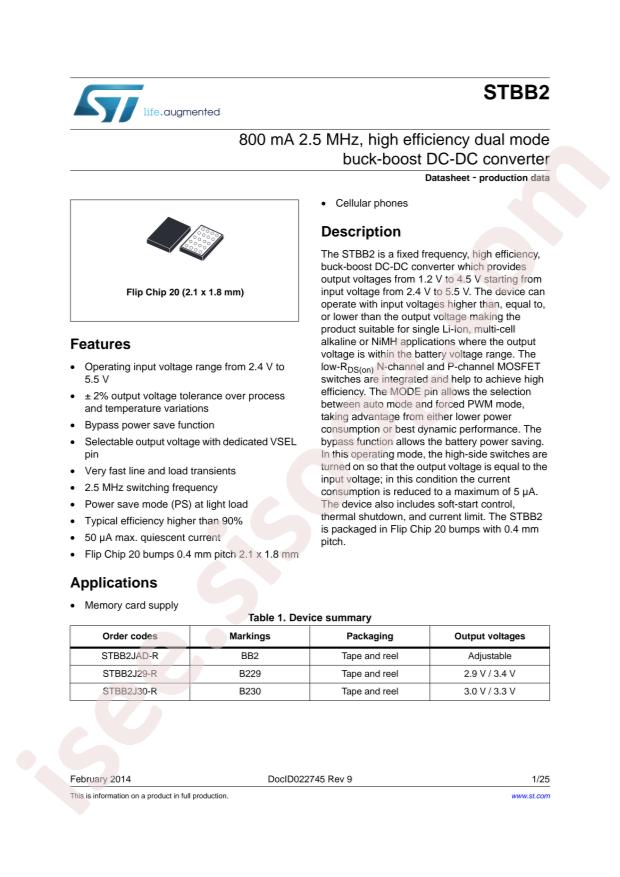

مشاهده دیتاشیت STBB2J30-R	دانلود دیتاشیت

STBB2 25 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Buck-boost type
Topology: Step-down-Boost
Datasheet: STMicroelectronics STBB2J30-R
Output Type: Adjustable
Input Voltage: 2.4V~5.5V
Number of Outputs: 1
Switching Frequency: 2.5MHz
Output Current (Max): 800mA
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: FlipChip-20(1.8x2.1)
Manufacturer: STMicroelectronics
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Voltage - Input (Min): 2.4V
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 3V, 3.3V
Voltage - Output (Max): -
Current - Output: 800mA
Frequency - Switching: 2.5MHz
Synchronous Rectifier: Yes
Mounting Type: Surface Mount
Package / Case: 20-UFBGA, FCBGA
Supplier Device Package: 20-Flip-Chip (2.1x1.8)
Base Part Number: STBB2
detail: Buck-Boost Switching Regulator IC Positive Programmable 3V, 3.3V 1 Output 800mA 20-UFBGA, FCBGA
