STPSC8H065G-TR دیتاشیت

STPSC8H065G-TR

مشخصات دیتاشیت

نام دیتاشیت STPSC8H065G-TR
حجم فایل 57.875 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

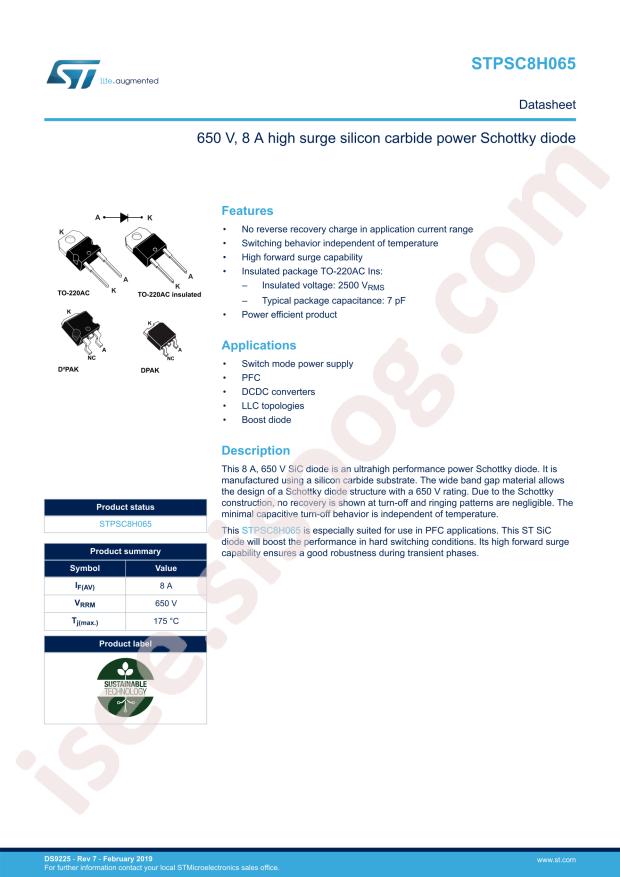

مشاهده دیتاشیت STPSC8H065G-TR

دانلود دیتاشیت

سایر مستندات

STPSC8H065 16 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPSC8H065G-TR
  • Reverse Voltage (Vr): 650V
  • Forward Voltage (Vf@If): 1.75V@8A
  • Average Rectified Current (Io): 8A
  • Package: D2PAK
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Silicon Carbide Schottky
  • Voltage - DC Reverse (Vr) (Max): 650V
  • Current - Average Rectified (Io): 8A
  • Voltage - Forward (Vf) (Max) @ If: 1.75V @ 8A
  • Speed: No Recovery Time > 500mA (Io)
  • Reverse Recovery Time (trr): 0ns
  • Current - Reverse Leakage @ Vr: 80µA @ 650V
  • Capacitance @ Vr, F: 414pF @ 0V, 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: D²PAK
  • Operating Temperature - Junction: -40°C ~ 175°C
  • Base Part Number: STPSC8H065
  • detail: Diode Silicon Carbide Schottky 650V 8A Surface Mount D²PAK
