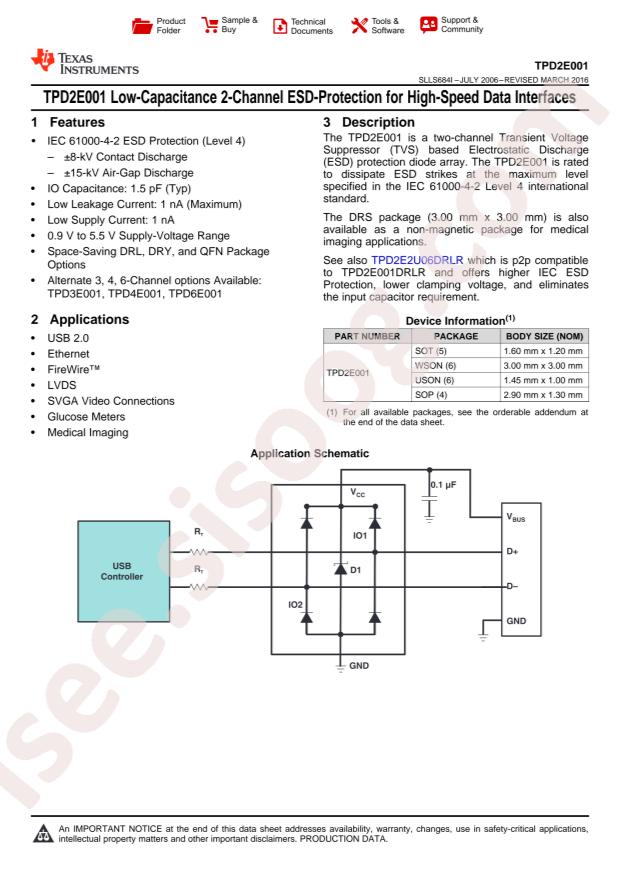

TPD2E001DRSR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPD2E001DRSR
|
|
حجم فایل
|
80.15
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
27
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
Texas Instruments TPD2E001DRSR
-
Number of Lines:
2
-
Clamping Voltage@Ipp:
-
-
Breakdown Voltage (VBR):
11V
-
Package:
SON-6
-
Manufacturer:
Texas Instruments
-
Type:
Steering (Rail to Rail)
-
Supplier Device Package:
6-SON-EP (3x3)
-
Unidirectional Channels:
2
-
Current - Peak Pulse (10/1000µs):
-
-
Applications:
Ethernet
-
Voltage - Reverse Standoff (Typ):
5.5V (Max)
-
Voltage - Breakdown (Min):
11V
-
Voltage - Clamping (Max) @ Ipp:
-
-
Capacitance @ Frequency:
-
-
Mounting Type:
Surface Mount
-
Power Line Protection:
Yes
-
Base Part Number:
TPD2E
-
Packaging:
Cut Tape (CT)
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Series:
-
-
Power - Peak Pulse:
-
-
Package / Case:
6-WDFN Exposed Pad
-
Part Status:
Active
-
detail:
Clamp Ipp Tvs Diode Surface Mount 6-SON-EP (3x3)
