STL8N80K5 دیتاشیت

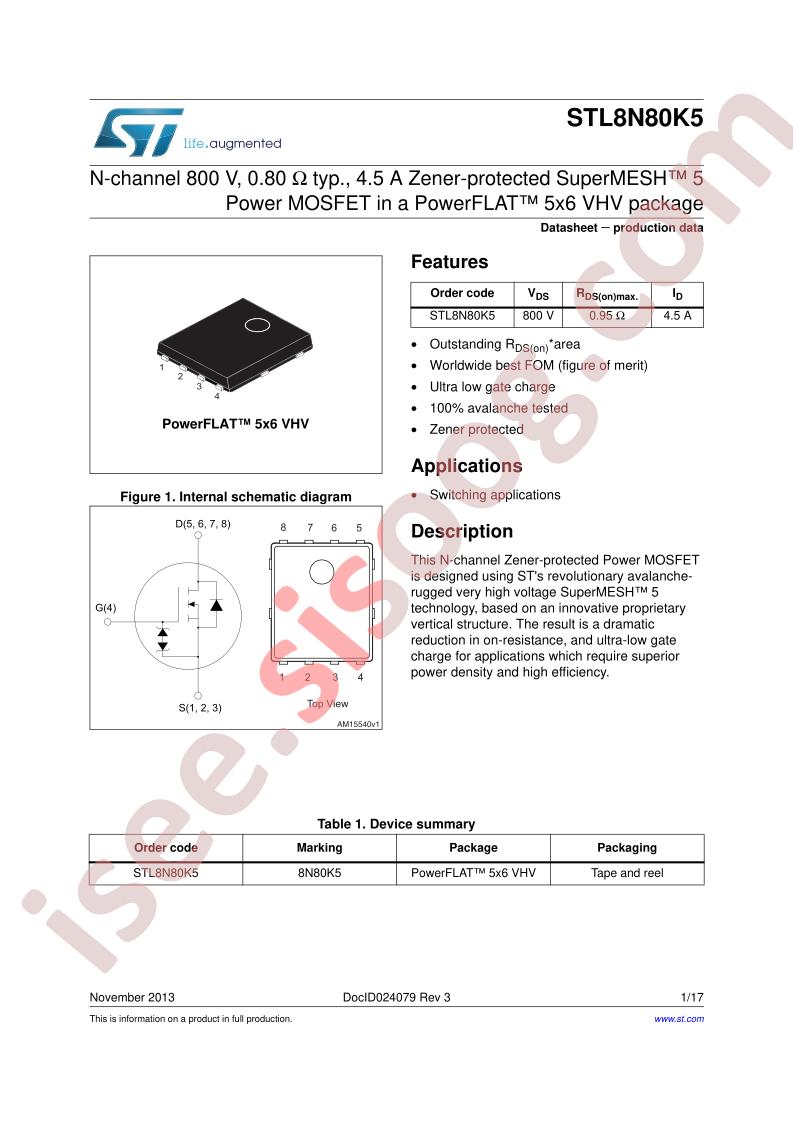

مشخصات دیتاشیت
|
نام دیتاشیت
|
STL8N80K5
|
|
حجم فایل
|
1432.901
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH5™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
800V
-
Current - Continuous Drain (Id) @ 25°C:
4.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
950mOhm @ 3A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
16.5nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
450pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
42W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (5x6)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL8
-
detail:
N-Channel 800V 4.5A (Tc) 42W (Tc) Surface Mount PowerFlat™ (5x6)
