DRV777DR دیتاشیت

DRV777DR

مشخصات دیتاشیت

نام دیتاشیت DRV777DR
حجم فایل 90.903 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

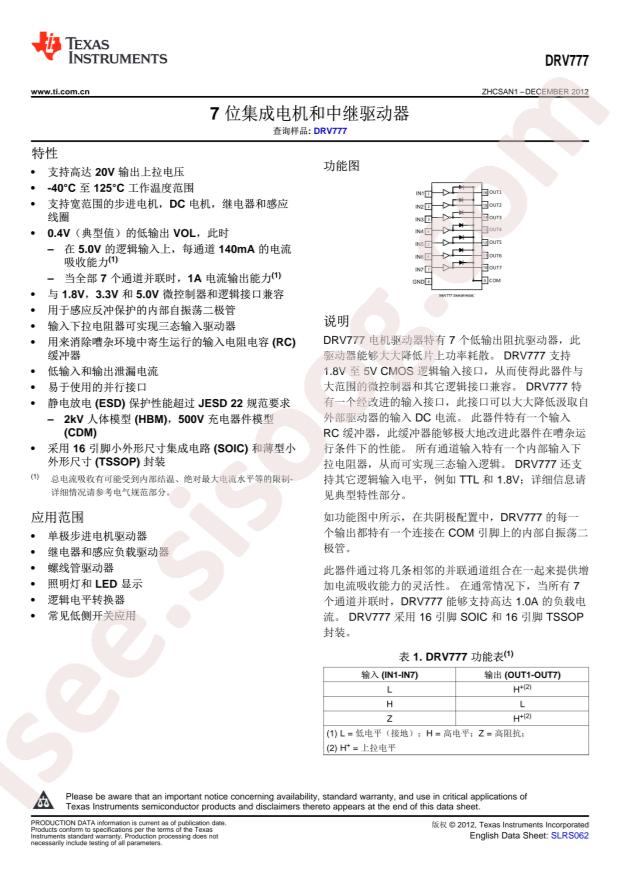

مشاهده دیتاشیت DRV777DR

دانلود دیتاشیت

سایر مستندات

DRV777 20 pages

مشخصات فنی

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Texas Instruments DRV777DR
  • Interface: Parallel
  • Output Current: 1A
  • Supply Voltage: 5V~20V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Motor Type - Stepper: Unipolar
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Supplier Device Package: 16-SOIC
  • Applications: General Purpose
  • Step Resolution: -
  • Voltage - Load: 5V ~ 20V
  • Mounting Type: Surface Mount
  • Voltage - Supply: 5V ~ 20V
  • Packaging: Cut Tape (CT)
  • Motor Type - AC, DC: Brushed DC
  • Output Configuration: Low Side (7)
  • Series: -
  • Base Part Number: DRV777
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Current - Output: 1A
  • Part Status: Active
  • Technology: NMOS
  • detail: Unipolar Motor Driver NMOS Parallel 16-SOIC
