SN74LVC1G86QDCKRQ1 دیتاشیت

SN74LVC1G86QDCKRQ1

مشخصات دیتاشیت

نام دیتاشیت SN74LVC1G86QDCKRQ1
حجم فایل 71.537 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

مشاهده دیتاشیت SN74LVC1G86QDCKRQ1

دانلود دیتاشیت

سایر مستندات

Logic Guide 20 pages

Signal Switch Data Book 1267 pages

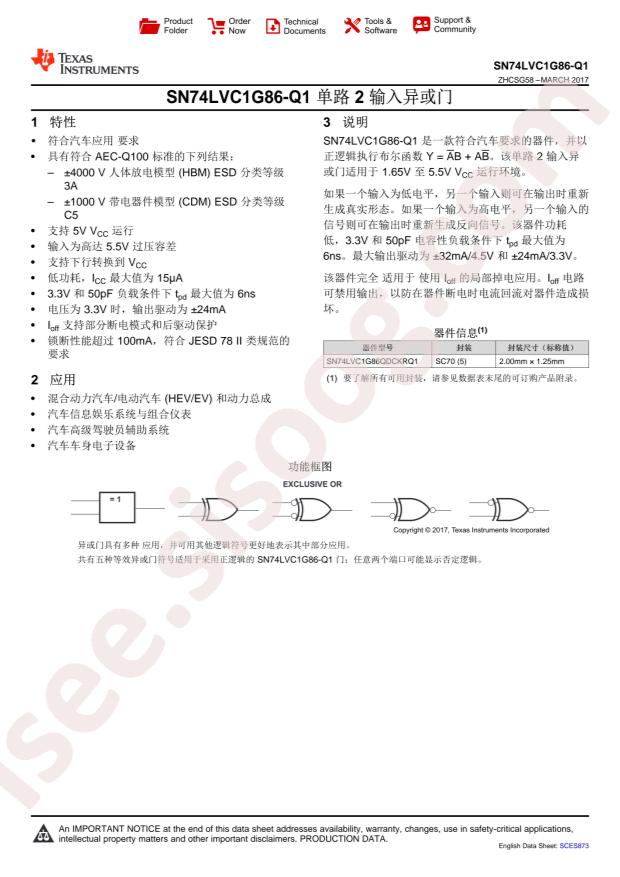

SN74LVC1G86-Q1 Datasheet 20 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LVC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LVC1G86QDCKRQ1
  • Sink Current: 32mA
  • Source Current: 32mA
  • Supply Voltage: 1.65V~5.5V
  • Logic Gate Type: XORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.1V~0.55V
  • Operating Temperature: -40°C~+125°C
  • High Level Range (VIH): 0.1V~3.8V
  • Propagation Delay Time: 5ns@5V,50pF
  • Quiescent Current (Max): 15uA
  • Package: SC-70-5
  • Manufacturer: Texas Instruments
  • Logic Level - High: 0.1V ~ 3.8V
  • Base Part Number: SN74LVC1G
  • Supplier Device Package: SC-70-5
  • Logic Level - Low: 0.1V ~ 0.55V
  • Package / Case: 5-TSSOP, SC-70-5, SOT-353
  • Current - Quiescent (Max): 15µA
  • Current - Output High, Low: 32mA, 32mA
  • Features: -
  • Mounting Type: Surface Mount
  • Packaging: Digi-Reel®
  • Voltage - Supply: 1.65V ~ 5.5V
  • Number of Circuits: 1
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Number of Inputs: 2
  • Part Status: Active
  • Logic Type: XOR (Exclusive OR)
  • detail: XOR (Exclusive OR) IC 1 Channel SC-70-5
