CSD15571Q2 دیتاشیت

CSD15571Q2

مشخصات دیتاشیت

نام دیتاشیت CSD15571Q2
حجم فایل 95.422 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

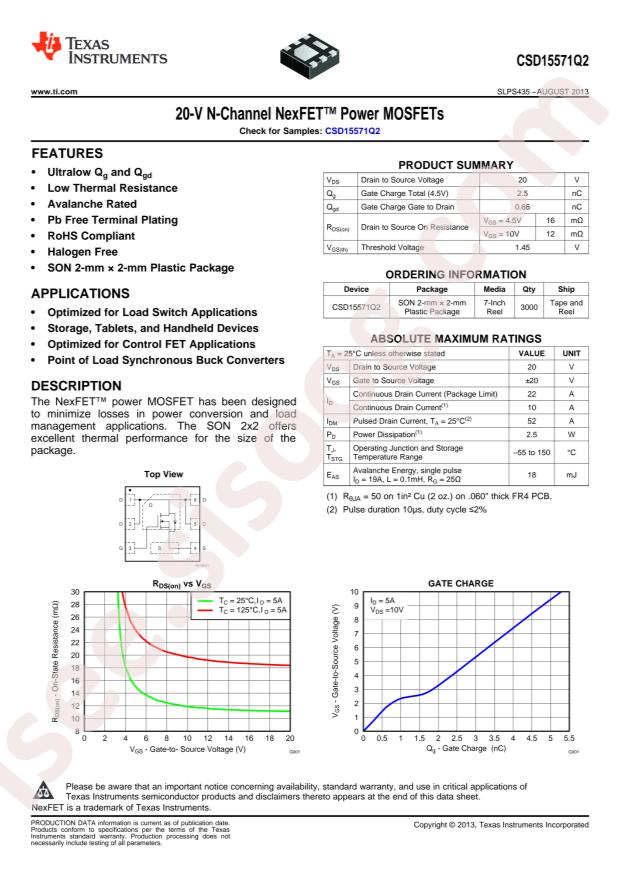

مشاهده دیتاشیت CSD15571Q2

دانلود دیتاشیت

سایر مستندات

CSD15571Q2 10 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Texas Instruments CSD15571Q2
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 2.5W
  • Total Gate Charge (Qg@Vgs): 6.7nC@10V
  • Drain Source Voltage (Vdss): 20V
  • Input Capacitance (Ciss@Vds): 419pF@10V
  • Continuous Drain Current (Id): 22A
  • Gate Threshold Voltage (Vgs(th)@Id): 1.9V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 15mΩ@10V,5A
  • Package: WSON-6(2x2)
  • Manufacturer: Texas Instruments
  • FET Type: N-Channel
  • Vgs(th) (Max) @ Id: 1.9V @ 250µA
  • Base Part Number: CSD1557
  • Supplier Device Package: 6-SON (2x2)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 419pF @ 10V
  • FET Feature: -
  • Drain to Source Voltage (Vdss): 20V
  • Current - Continuous Drain (Id) @ 25°C: 22A (Ta)
  • Mounting Type: Surface Mount
  • Rds On (Max) @ Id, Vgs: 15mOhm @ 5A, 10V
  • Packaging: Cut Tape (CT)
  • Series: NexFET™
  • Package / Case: 6-WDFN Exposed Pad
  • Gate Charge (Qg) (Max) @ Vgs: 6.7nC @ 10V
  • Vgs (Max): ±20V
  • Part Status: Active
  • Power Dissipation (Max): 2.5W (Ta)
  • Technology: MOSFET (Metal Oxide)
  • detail: N-Channel 20V 22A (Ta) 2.5W (Ta) Surface Mount 6-SON (2x2)
