دیتاشیت STDRIVE601TR

STDRIVE601

مشخصات دیتاشیت

نام دیتاشیت STDRIVE601
حجم فایل 547.398 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

دانلود دیتاشیت STDRIVE601

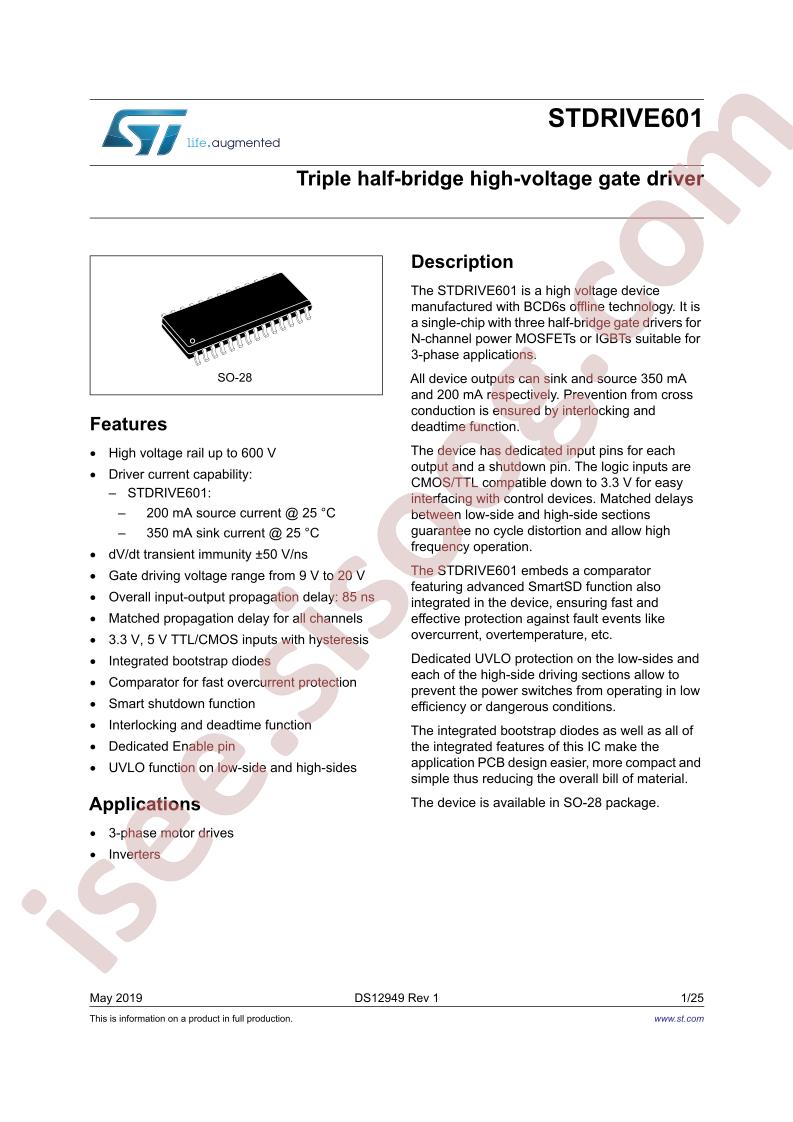

STDRIVE601 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tray
  • Part Status: Active
  • Output Configuration: Half Bridge (3)
  • Applications: DC Motors, General Purpose
  • Interface: Analog, Logic
  • Load Type: Capacitive and Resistive
  • Technology: Power MOSFET, IGBT
  • Rds On (Typ): 35Ohm
  • Current - Output / Channel: -
  • Current - Peak Output: 350mA
  • Voltage - Supply: 9V ~ 20V
  • Voltage - Load: 580V
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Features: Bootstrap Circuit
  • Fault Protection: Over Current, Over Temperature, UVLO
  • Mounting Type: Surface Mount
  • Package / Case: 28-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 28-SO
  • detail: Half Bridge (3) Driver DC Motors, General Purpose Power MOSFET, IGBT 28-SO
