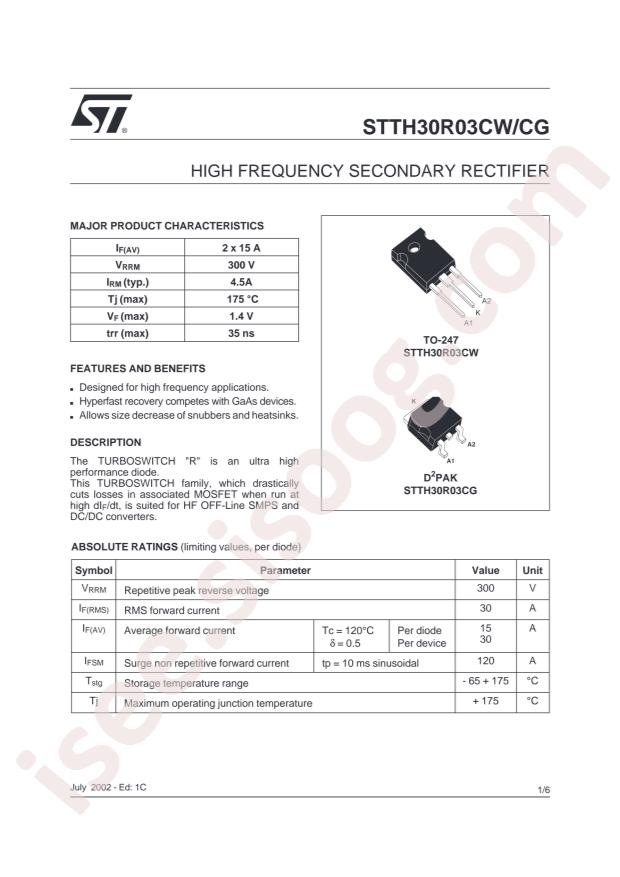

دیتاشیت STTH30R03CG-TR
مشخصات دیتاشیت
| نام دیتاشیت |
STTH30R03CW/CG
|
| حجم فایل |
80.656
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Configuration:
1 Pair Common Cathode
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
300V
-
Current - Average Rectified (Io) (per Diode):
15A
-
Voltage - Forward (Vf) (Max) @ If:
1.9V @ 15A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Reverse Recovery Time (trr):
35ns
-
Current - Reverse Leakage @ Vr:
20µA @ 300V
-
Operating Temperature - Junction:
175°C (Max)
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D2PAK
-
Base Part Number:
STTH30
-
detail:
Diode Array 1 Pair Common Cathode Standard 300V 15A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
