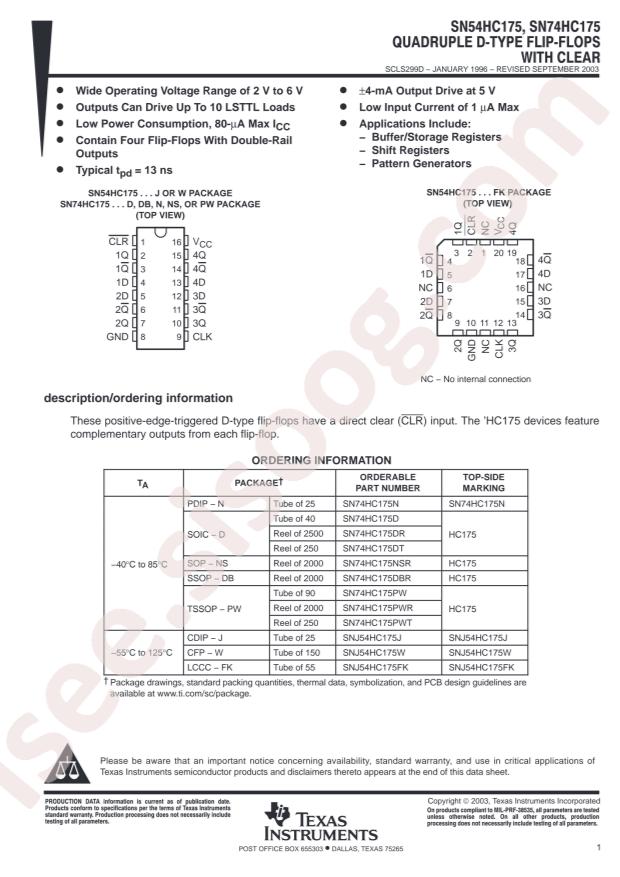

- دیتاشیت SN74HC175DR
SN74HC175DR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HC175DR |
|---|---|
| حجم فایل | 81.309 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت SN74HC175DR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HC175, SN74HC175 22 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74HC
- Category: Logic ICs/Flip Flops
- Function: Reset
- Datasheet: Texas Instruments SN74HC175DR
- Output Type: 互补型
- Sink Current: 5.2mA
- Trigger Type: 上升沿
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Clock Frequency: 60MHz
- Input Capacitance: 3pF
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Iq): 8uA
- Maximum Propagation Delay: 26ns@6V,50pF
- Number of Bits per Element: 4
- Package: SOP-16
- Manufacturer: Texas Instruments
- Supplier Device Package: 16-SOIC
- Current - Output High, Low: 5.2mA, 5.2mA
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Iq): 8µA
- Mounting Type: Surface Mount
- Packaging: Cut Tape (CT)
- Max Propagation Delay @ V, Max CL: 26ns @ 6V, 50pF
- Base Part Number: SN74HC1
- Part Status: Active
- Package / Case: 16-SOIC (0.154", 3.90mm Width)
- detail: Flip Flop 1 Element D-Type 4 Bit Positive Edge 16-SOIC (0.154", 3.90mm Width)
