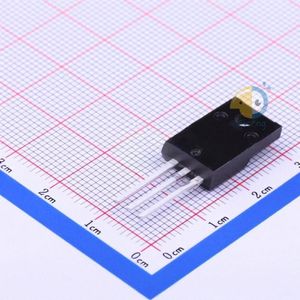

STF11NM50N دیتاشیت

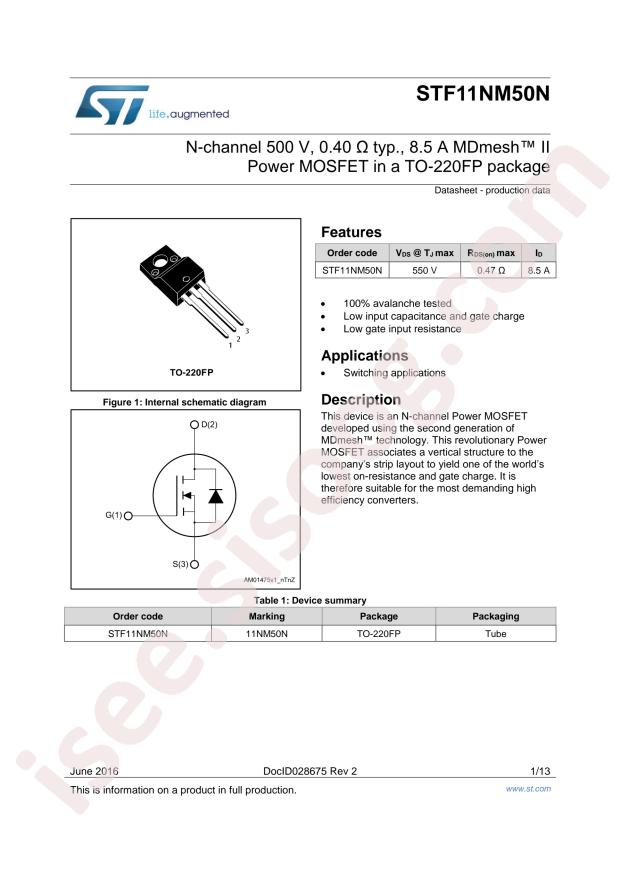

مشخصات دیتاشیت
|
نام دیتاشیت
|
STF11NM50N
|
|
حجم فایل
|
58.004
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STF11NM50N
-
Power Dissipation (Pd):
25W
-
Total Gate Charge (Qg@Vgs):
19nC@10V
-
Drain Source Voltage (Vdss):
500V
-
Input Capacitance (Ciss@Vds):
547pF@50V
-
Continuous Drain Current (Id):
8.5A
-
Gate Threshold Voltage (Vgs(th)@Id):
4V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
470mΩ@10V,4.5A
-
Package:
TO-220FPAB-3
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
500V
-
Current - Continuous Drain (Id) @ 25°C:
8.5A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
470mOhm @ 4.5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
19nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
547pF @ 50V
-
FET Feature:
-
-
Power Dissipation (Max):
25W (Tc)
-
Operating Temperature:
150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220FP
-
Package / Case:
TO-220-3 Full Pack
-
Base Part Number:
STF11
-
detail:
N-Channel 500V 8.5A (Tc) 25W (Tc) Through Hole TO-220FP
