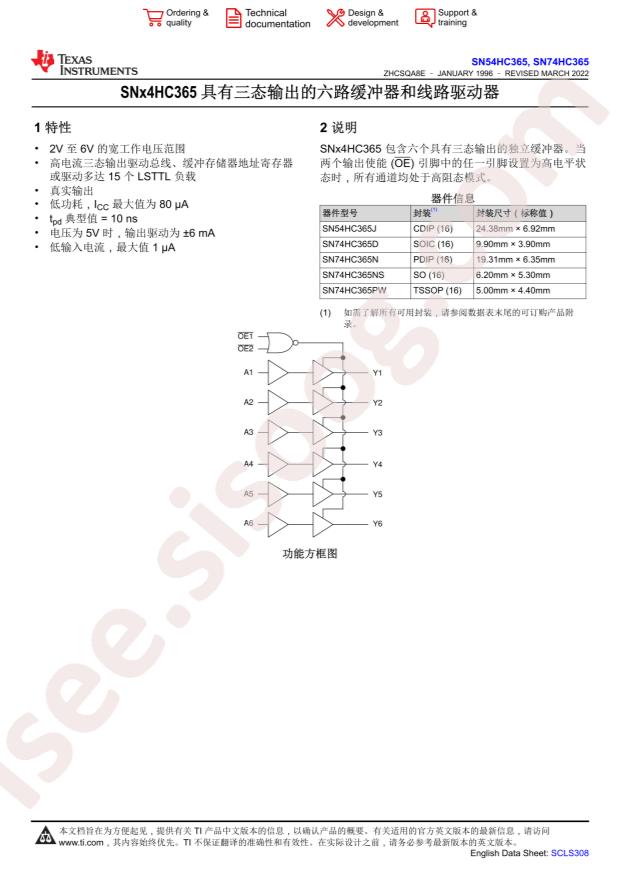

- دیتاشیت SN74HC365PWR
SN74HC365PWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HC365PWR |
|---|---|
| حجم فایل | 54.749 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت SN74HC365PWR |
دانلود دیتاشیت |
|---|
سایر مستندات
Logic Guide 20 pages
Signal Switch Data Book 1267 pages
Digital Logic Data Book 794 pages
SN54HC365, SN74HC365 18 pages
مشخصات فنی
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74HC365PWR
- output type: Tri-State
- Logic Family: 74HC
- Sink Current: 7.8mA
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 6
- Package: TSSOP-16
- Manufacturer: Texas Instruments
- Supplier Device Package: 16-TSSOP
- Series: 74HC
- Mounting Type: Surface Mount
- Base Part Number: SN74HC3
- Packaging: Cut Tape (CT)
- Current - Output High, Low: 7.8mA, 7.8mA
- Input Type: -
- Package / Case: 16-TSSOP (0.173", 4.40mm Width)
- Part Status: Active
- Logic Type: Buffer, Non-Inverting
- Voltage - Supply: 2V ~ 6V
- detail: Buffer, Non-Inverting 1 Element 6 Bit per Element 3-State Output 16-TSSOP
