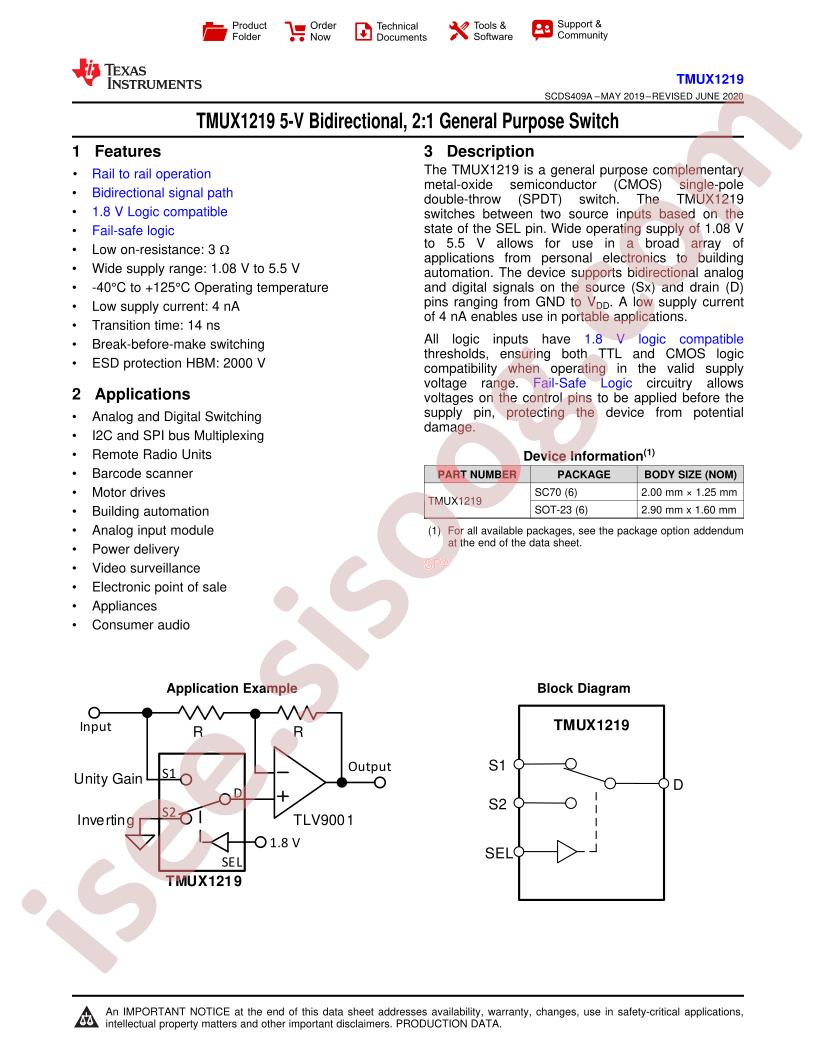

TMUX1219 Datasheet دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت TMUX1219 Datasheet	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
Datasheet: Texas Instruments TMUX1219DCKR
Supply Voltage: 1.08V~5.5V
Switch Circuit: SPDT(SPDT)
Number of Channels: 1
On-State Resistance (Max): 3Ω
Package: SC-70-6
Manufacturer: Texas Instruments
Voltage - Supply, Single (V+): 1.08V ~ 5.5V
Multiplexer/Demultiplexer Circuit: 2:1
Current - Leakage (IS(off)) (Max): 5nA (Typ)
Crosstalk: -45dB @ 10MHz
Voltage - Supply, Dual (V±): -
Packaging: Cut Tape (CT)
Channel-to-Channel Matching (ΔRon): 150mOhm
Charge Injection: -10pC
Supplier Device Package: SC-70-6
-3db Bandwidth: 250MHz
Base Part Number: TMUX12
Mounting Type: Surface Mount
Channel Capacitance (CS(off), CD(off)): 7pF, -
Switch Time (Ton, Toff) (Max): -, -
Operating Temperature: -40°C ~ 125°C (TA)
Number of Circuits: 1
Series: -
Package / Case: 6-TSSOP, SC-88, SOT-363
Part Status: Active
detail: 1 Circuit IC Switch 2:1 3Ohm (Typ) SC-70-6
