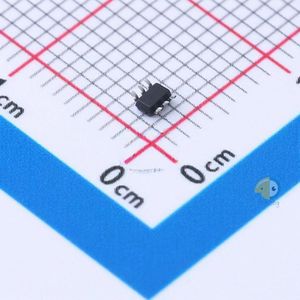

TMUX1219DCKR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TMUX1219DCKR |
|---|---|
| حجم فایل | 73.096 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت TMUX1219DCKR |
دانلود دیتاشیت |
|---|
سایر مستندات

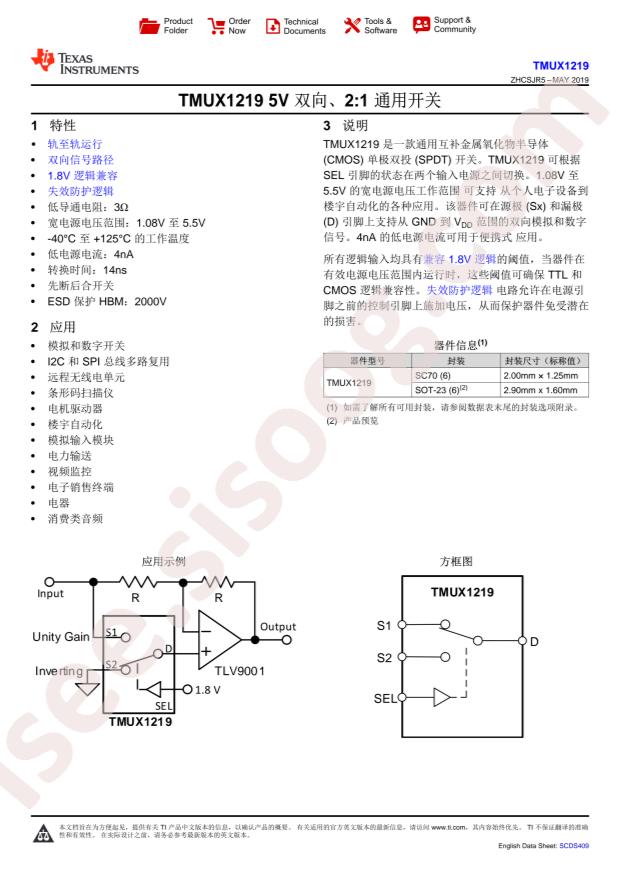

TMUX1219 Datasheet 34 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Texas Instruments TMUX1219DCKR
- Supply Voltage: 1.08V~5.5V
- Switch Circuit: SPDT(SPDT)
- Number of Channels: 1
- On-State Resistance (Max): 3Ω
- Package: SC-70-6
- Manufacturer: Texas Instruments
- Voltage - Supply, Single (V+): 1.08V ~ 5.5V
- Multiplexer/Demultiplexer Circuit: 2:1
- Current - Leakage (IS(off)) (Max): 5nA (Typ)
- Crosstalk: -45dB @ 10MHz
- Voltage - Supply, Dual (V±): -
- Packaging: Cut Tape (CT)
- Channel-to-Channel Matching (ΔRon): 150mOhm
- Charge Injection: -10pC
- Supplier Device Package: SC-70-6
- -3db Bandwidth: 250MHz
- Base Part Number: TMUX12
- Mounting Type: Surface Mount
- Channel Capacitance (CS(off), CD(off)): 7pF, -
- Switch Time (Ton, Toff) (Max): -, -
- Operating Temperature: -40°C ~ 125°C (TA)
- Number of Circuits: 1
- Series: -
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Part Status: Active
- detail: 1 Circuit IC Switch 2:1 3Ohm (Typ) SC-70-6
