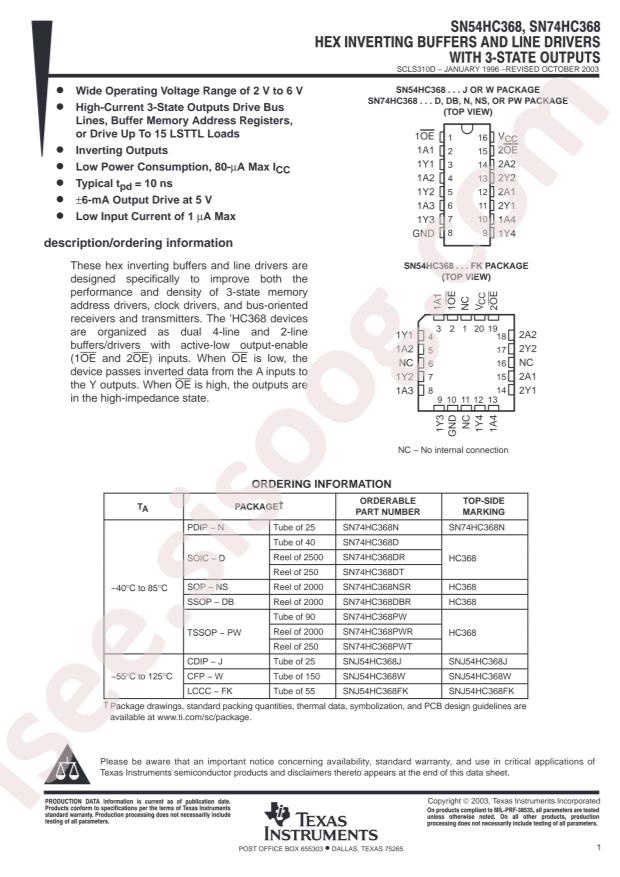

SN74HC368DR دیتاشیت

SN74HC368DR

مشخصات دیتاشیت

نام دیتاشیت SN74HC368DR
حجم فایل 91.962 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت SN74HC368DR

دانلود دیتاشیت

سایر مستندات

SN54HC368, SN74HC368 20 pages

مشخصات فنی

  • RoHS: true
  • Category: Logic ICs/Buffer/Driver/Transceiver
  • Datasheet: Texas Instruments SN74HC368DR
  • Input type: -
  • output type: Tri-State
  • Logic Family: 74HC
  • Sink Current: 7.8mA
  • Source Current: 7.8mA
  • Supply Voltage: 2V~6V
  • Number of Elements: 2
  • Operating Temperature: -40°C~+85°C
  • Number of Bits per Element: 2;4
  • Package: SOP-16
  • Manufacturer: Texas Instruments
  • Supplier Device Package: 16-SOIC
  • Series: 74HC
  • Mounting Type: Surface Mount
  • Base Part Number: SN74HC3
  • Packaging: Cut Tape (CT)
  • Current - Output High, Low: 7.8mA, 7.8mA
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Part Status: Active
  • Logic Type: Buffer, Inverting
  • Voltage - Supply: 2V ~ 6V
  • detail: Buffer, Inverting 2 Element 2, 4 (Hex) Bit per Element 3-State Output 16-SOIC
