SN74AUP2G08 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74AUP2G08
|
|
حجم فایل
|
1327.401
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
26
|
مشخصات فنی
-
RoHS:
true
-
Series:
74AUP
-
Category:
Logic ICs/Gates
-
Datasheet:

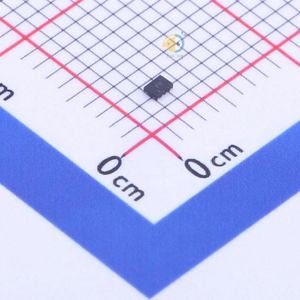

Texas Instruments SN74AUP2G08DQER
-
Sink Current:
4mA
-
Source Current:
4mA
-
Supply Voltage:
0.8V~3.6V
-
Logic Gate Type:
And
-
Number of Channels:
2
-
Low Level Range (VIL):
0.7V~0.9V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
1.6V~2V
-
Propagation Delay Time:
6.7ns@3.3V,30pF
-
Quiescent Current (Max):
500nA
-
Package:
X2-SON-8(1x1.4)
-
Manufacturer:
Texas Instruments
-
Logic Level - High:
1.6V ~ 2V
-
Base Part Number:
SN74AUP
-
Supplier Device Package:
8-X2SON (1.4x1.0)
-
Logic Level - Low:
0.7V ~ 0.9V
-
Package / Case:
8-XFDFN
-
Current - Quiescent (Max):
500nA
-
Current - Output High, Low:
4mA, 4mA
-
Features:
-
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Voltage - Supply:
0.8V ~ 3.6V
-
Number of Circuits:
2
-
Max Propagation Delay @ V, Max CL:
6.7ns @ 3.3V, 30pF
-
Number of Inputs:
2
-
Part Status:
Active
-
Logic Type:
AND Gate
-
detail:
AND Gate IC 2 Channel 8-X2SON (1.4x1.0)
