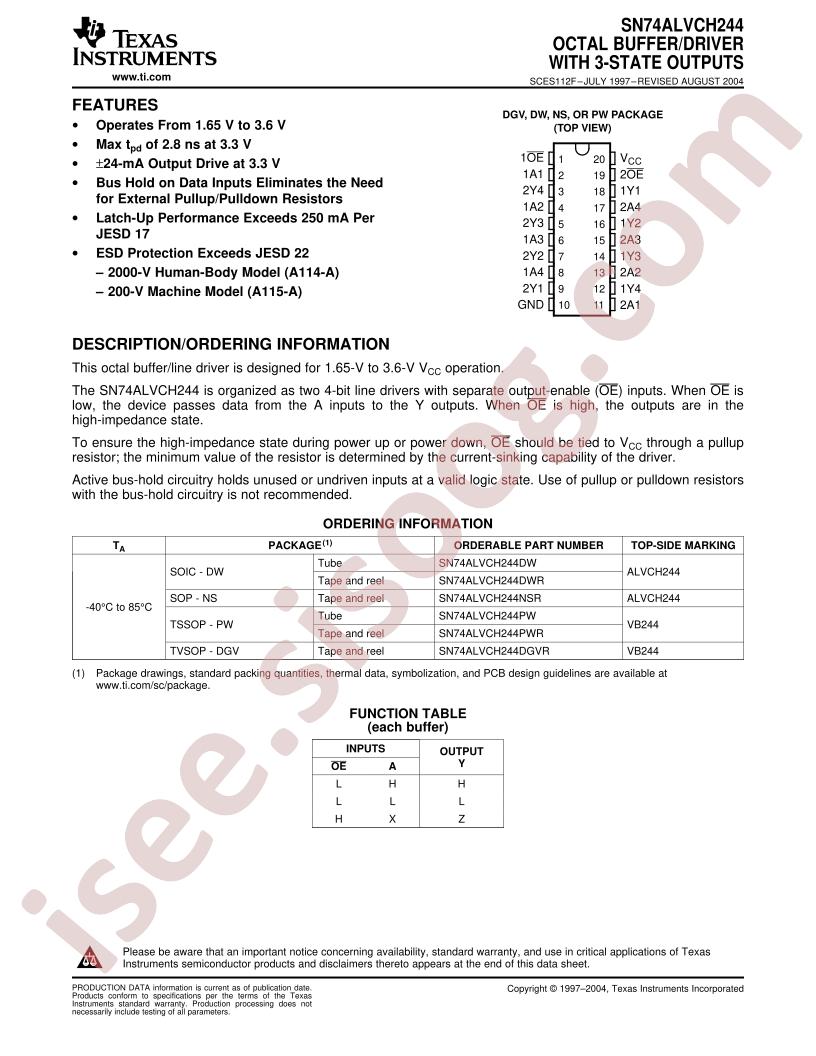

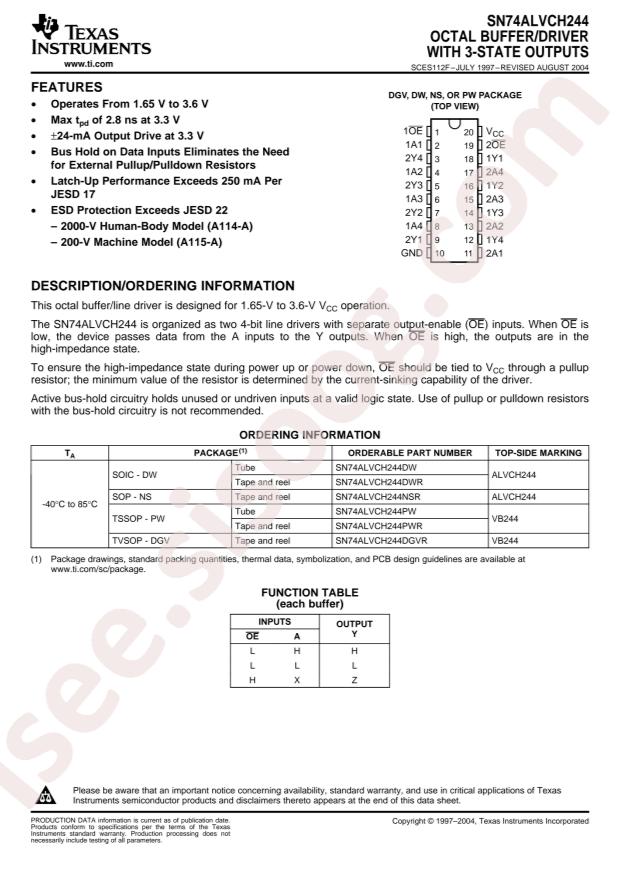

دیتاشیت SN74ALVCH244DGVR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74ALVCH244
|
| حجم فایل |
888.856
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Category:
Logic ICs/Buffer/Driver/Transceiver
-
Datasheet:
Texas Instruments SN74ALVCH244DGVR
-
Input type:
-
-
output type:
Tri-State
-
Sink Current:
24mA
-
Source Current:
24mA
-
Supply Voltage:
1.65V~3.6V
-
Operating Temperature:
-40°C~+85°C
-
Package:
TVSOP-20-4.4mm
-
Manufacturer:
Texas Instruments
-
Number of Elements:
2
-
Supplier Device Package:
20-TVSOP
-
Series:
74ALVCH
-
Mounting Type:
Surface Mount
-
Base Part Number:
SN74ALVCH
-
Packaging:
Cut Tape (CT)
-
Number of Bits per Element:
4
-
Current - Output High, Low:
24mA, 24mA
-
Package / Case:
20-TFSOP (0.173", 4.40mm Width)
-
Part Status:
Active
-
Logic Type:
Buffer, Non-Inverting
-
Voltage - Supply:
1.65V ~ 3.6V
-
detail:
Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-TVSOP
